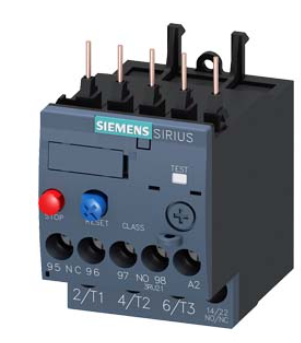

SIEMENS 3RU2116-1HB0 热过载继电器

Size of overload relay: S00

Power loss [W] for rated value of the current at AC in hot operating state: 6.6 W

Per pole: 2.2 W

Insulation voltage with degree of pollution 3 at AC rated value: 690 V

Surge voltage resistance rated value: 6 kV

Maximum permissible voltage for protective separation in networks with grounded star point

Between auxiliary and auxiliary circuit: 440 V

Between auxiliary and auxiliary circuit: 440 V

Between main and auxiliary circuit: 440 V

Between main and auxiliary circuit: 440 V

Ambient conditions

Installation altitude at height above sea level maximum 2 000 m

Ambient temperature

during operation: -40 ~ +70 °C

during storage: -55 ~ +80 °C

during transport: -55 ~ +80 °C

Temperature compensation: -40 ~ +60 °C

Relative humidity during operation: 10 ~ 95 %
