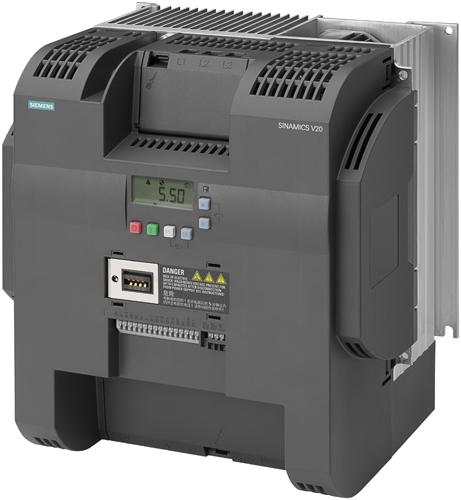

SIEMENS 6SL3210-5BE31-8UV0 Converter (22.00 kW; 480 V;45.00 A)

Input

 Number of phase : 3 AC

 Line voltage: 380 ... 480 V -15 % +10 %

 Line frequency:47 ... 63 Hz

Output

 Number of phases: 3AC

 Rated voltage: 400V

 Rated power (HO): 18.50 kW / 25.00 hp

 Rated power (LO): 22.00 kW / 30.00 hp

 Rated current (HO): 38.00 A

 Rated current (LO): 45.00 A

 Rated current (HO) at 480V: 34.00 A

 Rated current (LO) at 480V 40.00 A

 Pulse frequency: 4.00 kHz

 Output frequency: 0 ... 550 Hz


Power factor λ: 0.72

Offset factor cos φ: 0.95

Efficiency η: 0.98

Ambient temperature

Operation: 10 ... 60 °C (14 ... 140 °F)


Storage: -40 ... 70 °C (-40 ... 158 °F)

Relative humidity: 95 %

Net weight 6.24 kg ( 13.76 lb )

Width: 245.0 mm ( 9.65 in )

Height: 264.5 mm ( 10.41 in )

Depth: 209.0 mm ( 8.23 in )
