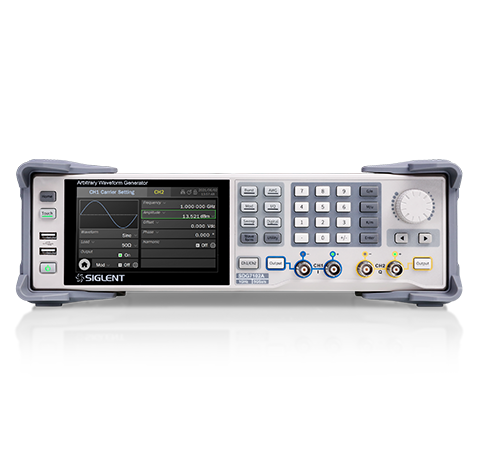

SIGLENT SDG7052A 任意波形发生器 (500 MHz; 5 GSa/s)

- Number of channels: 2 Differential/Single-ended

- Bandwidth:  500 MHz

- Sample rate:  5 GSa/s

- Vertical resolution:  14-bit

- Arbitrary waveform:  0.01 Sa/s ~ 2.5 GSa/s sample rate; 24 pts ~ 512 Mpts/ch memory depth, with segment editing and playback

- Vector signal (Optional): 500 MS/s max symbol rate; Carrier DC ~ 1 GHz settable. Includes modulation modes such as ASK, PSK, FSK and QAM. EasyIQ software provides vector signal creation and editing

- Continuous waveform:  Up to 1GHz, supports harmonic generation function

- Pulse:  Min pulse width 1 ns, min. edge 500 ps pulse with low jitter, the rise/fall edge is independently fine adjustable, and the pulse width is fine adjustable

- Noise:  Bandwidth 1 mHz ~ 1 GHz adjustable

- PRBS:  Bit rate 1 μbps ~ 312.5 Mbps, length PRBS3 ~ PRBS32

- Complex signal generation:  Supports internal/external modulation, AM, FM, PM, PWM, FSK, PSK, ASK, etc.; Supports sweep; Support burst

- Dual-channel function:  Inter channel tracking, coupling, and copying. Dual channel superposition function. Supports mutual modulation between channels

- Output range:  24 Vpp analog output superimposed ± 12 V DC offset, supports a maximum output range of ± 24 V (48 V)

- Digital bus(Optional): 16-bit, LVTTL or LVDS output; Bit rate: 1 μbps ~ 1 Gbps

- Interface: USB 2.0 Host x3, USB 2.0 Device(USBTMC); LAN 10M/100M (VXI-11/Telnet/Socket/WebServer); EXT MOD/CNT, 10MHz In, 10MHz Out, Marker x2, Trigger In/Out

- Interaction: 5” TFT-LCD with capacitive touch screen (800x480); Supports mouse operation; Supports Webserver; Supports SCPI control
