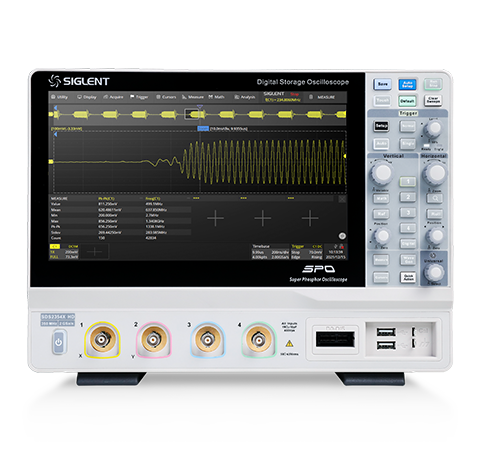

SIGLENT SDS2354X HD 数字存储示波器 (4+EXT; 350 MHz)

Analog channels: 4 + EXT

Bandwidth:  350 MHz (Upgradable to 500 MHz max.)

Vertical resolution: 12-bit

Sample rate (Max.):  2 GSa/s (interleaving mode）, 1 GSa/s (non-interleaving mode)

Memory depth (Max.): 200 Mpts/ch (interleaving mode)，100 Mpts/ch (non-interleaving mode)

Waveform capture rate (Max.): Normal mode：100,000 wfm/s; Sequence mode：500,000 wfm/s

Trigger type: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial

Serial trigger and decode: Standard: I2C, SPI, UART, CAN, LIN; Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester (decode only)

Measurement: 50+ parameters, statistics, histogram, trend, and track supported

Math: 2 traces; 2 Mpts FFT, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex , 10x , ln, lg, Interpolation, MaxHold, MinHold, ERES, Average. Supports formula editor

Data analysis: Search, Navigate, History, Mask Test, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, and Power Analysis

Digital channel (optional):  16-channel; maximum sample rate up to 500 MSa/s; record length up to 50 Mpts

Waveform generator (optional): Single-channel built-in waveform generator, frequency up to 25 MHz, 125 MSa/s sample rate, 16 kpts waveform memory

I/O:  USB 2.0 Host x3, USB 2.0 Device, 10 M / 100 M LAN, External trigger, Auxiliary output (TRIG OUT,PASS/FAIL)

Probe (Standard): One 500 MHz passive probe supplied for each channel

Display : 10.1 TFT-LCD with capacitive touch screen (1024*600)
