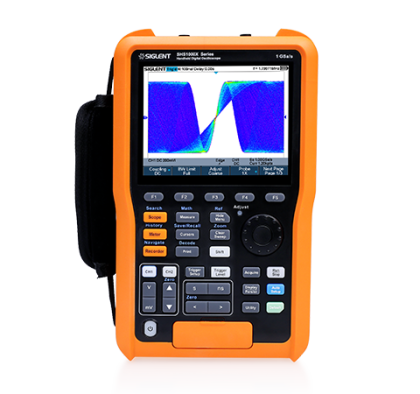

SIGLENT SHS1102X 手持式数字示波器 (100 MHz)

- Bandwidth: 100 MHz

- Sample rate (Max.):  Two-channel share a single 1 GSa/s ADC. When two channels are enabled, each channel has a maximum sample rate of 500 MSa/s. When a single channel is active, that channel has a sample rate of 1 GSa/s

- Channels: 2 analog oscilloscope channels, 1 multimeter channel

- Memory depth (Max.): 6 Mpts/CH (dual-channel mode); 12 Mpts/CH (single channel mode)

- Waveform capture rate (Max.): 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)

- Trigger type: Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video

- Serial Trigger and decoder: IIC, SPI, UART, CAN, LIN

- Data Logger(Recorder): Sample Logger. The Max sample rate is 25 kSa/s, the Min sample rate is 1 Sa/s. Measurement Logger. The Max interval is 10 minutes, the Min interval is 0.1second. The Max items of logging is 4

- I/O: USB Host, USB Device

- Max input Voltage (Scope):

CAT III 600 Vrms, CAT II 1000 Vrms Between BNC Signal and Protecting Earth

CAT III 600 Vrms, CAT II 1000 Vrms Between BNC GND and Protecting Earth

CAT III 300 Vrms Between BNC Signal and BNC GND

- Max input Voltage (Meter): CAT III 600 Vrms, CAT II 1000 Vrms

- Probe: PP925

- Display: 5.6-inch TFT-LCD (640x480)

- Weight: Without package 1.75 kg. With package 3.5 kg
