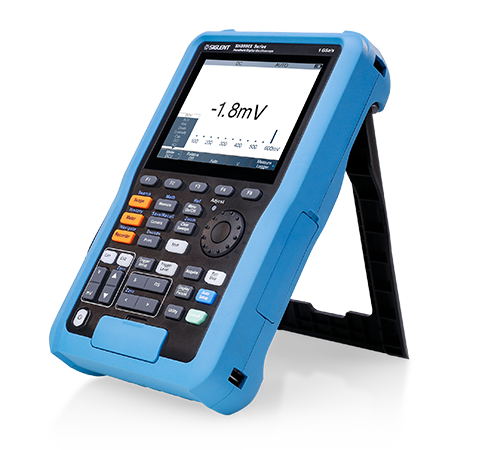

SIGLENT SHS810X 手持式数字示波器 (100 MHz)

- Bandwidth: 100 MHz

- Sample rate (Max.):  Two-channel share a single 1 GSa/s ADC. When two channels are enabled, each channel has a maximum sample rate of 500 MSa/s. When a single channel is active, that channel has a sample rate of 1 GSa/s

- Channels: 2 analog oscilloscope channels, 1 multimeter channel

- Memory depth (Max.): 6 Mpts/CH (dual-channel mode); 12 Mpts/CH (single channel mode)

- Waveform capture rate (Max.): 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)

- Trigger type: Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video

- Serial Trigger and decoder: IIC, SPI, UART, CAN, LIN

- Data Logger(Recorder): Sample Logger. The Max sample rate is 25 kSa/s, the Min sample rate is 1 Sa/s. Measurement Logger. The Max interval is 10 minutes, the Min interval is 0.1second. The Max items of logging is 4

- I/O: USB Host, USB Device

- Max input Voltage (Scope):

CAT II 300 Vrms Between BNC Signal and Protecting Earth

CAT II 30 Vrms Between BNC GND and Protecting Earth

CAT II 300 Vrms Between BNC Signal and BNC GND

- Max input Voltage (Meter): CAT III 300 Vrms, CAT II 600 Vrms

- Probe: PP510

- Display: 5.6-inch TFT-LCD (640x480)

- Weight: Without package 1.75 kg. With package 3.5 kg
