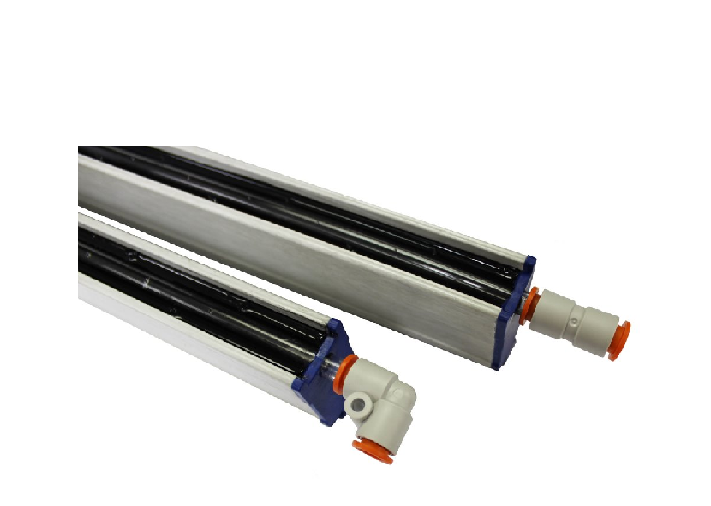

SIMCO IQ Easy Air Assist 静电中和器

Manufacturer:  SIMCO

Model: IQ Easy Air Assist

Warranty: 12 months


Housing material: Fiber reinforced polyester

Cable: Low voltage cable

Connector: Standard M12

Weight: 0.1 lb/ in (1.8 g/ mm)

Temperature range: 0°-104°F (40°C) max

Approval/Protection: CE/IP 66

Power Supply: integrated 24V DC voltage input

Connection: 5/16" [8 mm] OD tubing, quick disconnect

Gas: clean, dry oil-free air or nitrogen 100 psi [690 kPa] max

Consumption: Air Flow [SCFM] = Length [inches] X (pressure [psi] X 0.003 + 0.038)

Materials: tube- polycarbonate, fitting - Polybutylene

Detail

Datasheet
