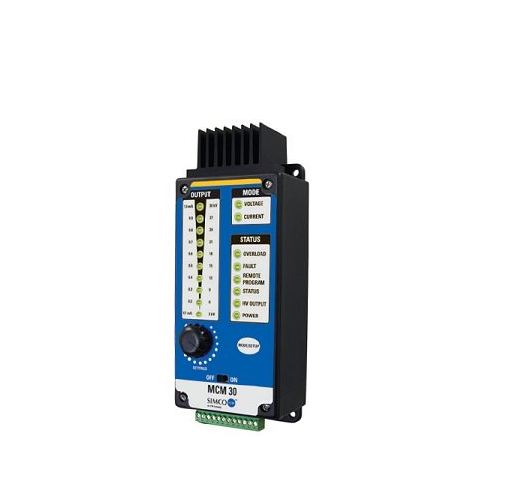

SIMCO MCM 30 静电发生器

Manufacturer: SIMCO

Model: MCM 30

Warranty: 12 months


Input power: 24 VDC, 3 A, 75W Max

Output Voltage range: 3 to 30 kVDC

Output Current range: 0.1mA to 1mA (single output)

Operating Temperature: 32°F (0°C) to 104°F (40°C)

Interface Connections: (12) position Terminal block and multipurpose interface connector

Enclosure: ABS Plastic (UL94V-0), color: black

Overall Dimensions: 7.75” L x 3.00” W x 2.62” D (197mm L x 76mm W x 67mm D)

Weight: 1.7 lb (.77 kg)

Mounting: Integrated mounting brackets

Detail

Datasheet
