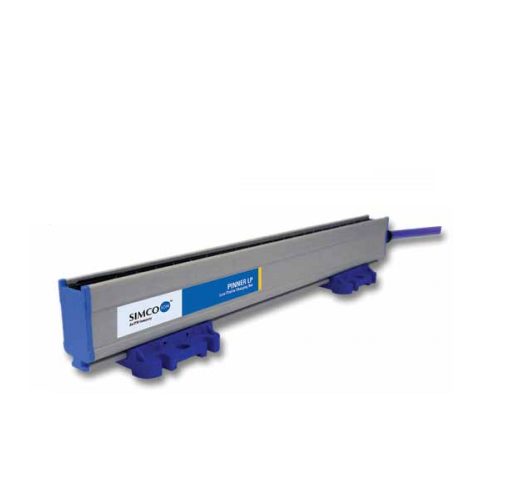

SIMCO Pinner LP 电弧充电器

Input Voltage: ±30 kVDC max

Output Current Continuous Use: 0.75 mA/ft max

Intermittent Use: 1.50 mA/ft max

Operating Env.: 32°F (0°C) to 200°F (90°C); 70% RH max, no dewing permissible

Operating Distance: 1/2” to 3” (application & voltage dependent)

Weight: 1.4 lb per foot

Dimensions: 1” W x 1.9” H x (EL + 2”) L

EL = Effective Length: 3” to 144” in 3” increments

Enclosure: Glass filled polyester (rugged, impact resistant, light grey color)

High Voltage Cable: Flexible, abrasion-resistant, silicone outer jacket rated to ±50 kV, 10-ft standard length (1/2” min bend radius)

Details

Datasheet
