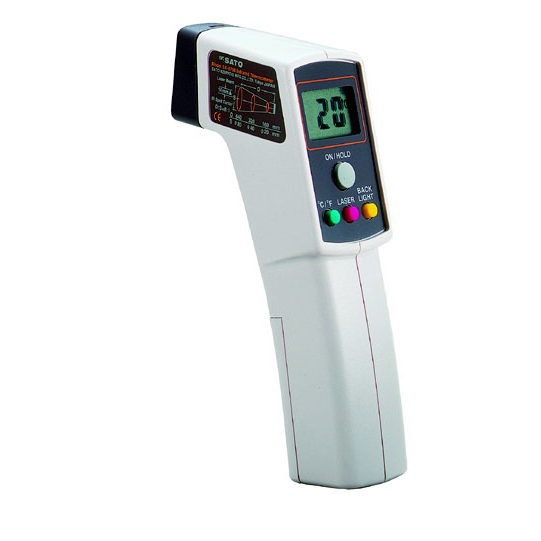

skSATO SK-8700 II 红外测温仪 (-20°C~420°C)

No. 8361-00

Measuring range: -20°C~315°C

Accuracy: ± 2°C at -20°C~100°C

± 2% Reading at other range

(conditions) Ambient temperature at 23°C ± 5°C calibrated by black body emissivity at 0.95

Resolution: 1°C / 1°F

Repeatability: ±1°C / ± 1°F

Emissivity (*1): Fixed at 0.95

Distance to spot ratio

(*2): 8 : 1

Sensor: Thermopile

Spectral response (*3): 6 to 14μm

Response time: 0.5 second

Laser sighting: 1 point, Class II Laser (use less than 1mW of power)

Operating ambient: 0 to 50°C for temperature less than 80% for R. humidity (no condensing)

Storage ambient: -20 to 55°C for temperature less than 90% for R. humidity (no condensing)

Power requirement: 9V battery x 1 (included)

Power consumption: Max. 40mA (when Laser and Backlight ON)

Battery Life:

approx. 5 hours (Laser & Backlight ON)

approx. 10 hours (Laser ON & Backlight OFF)

approx. 12 hours (Laser OFF & Backlight ON)

approx. 50 hours (Laser & Backlight OFF)

Functions:

°C/°F selectable

Backlight ON/OFF

Laser marker ON/OFF

Auto power off

Dimensions: (W) 41.5 x (D) 65 x (H) 160 mm

Weight: approx. 140 g (with battery)
