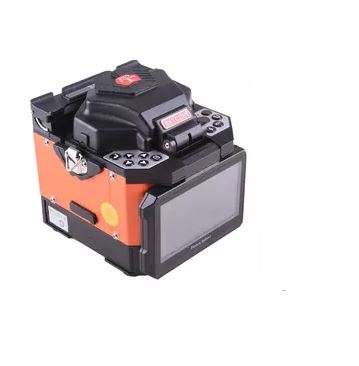

SKYCOM T-307H 熔接机 (Splicing Time 6s)

Applicable fibers : SM, MM, NZ-DS, EDF, Pigtail, Drop Cable..
Splice mode : 50 splicing modes
Splice loss : 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Splicing Time : 6 seconds
Heating Time : 15 seconds
Splice result storage : Last 6000 splice
Power : AC Input 100-240V, DC Input 12V
Dipslay : 4,3 inch LCD
Size / weight : 120(W)*120(D)*130(H)mm / 1,29 kg Without Batery
Temperature : -10 to 50deg C, Humidity : 0 to 95%RH, non-dew
Terminals : USB 2.0 (Mini-B type) connector for PC communication.
Standard Equipment Parts: Carry Case, Fiber Cleaver, Covered Cable Striping Plier, Miller Clamp, AC Power Adapte,CD Manual
