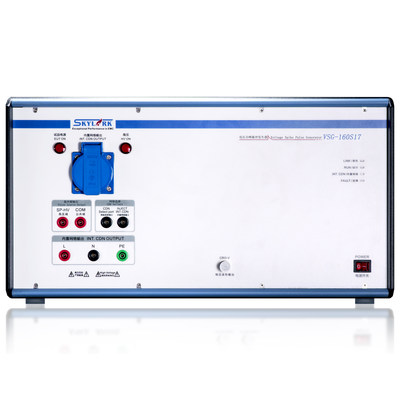

Skylark DO160-17 尖峰电压发生器

Test the voltage range: 5V to 1000V (continuously adjustable)

Rise time: ≤2μs

duration: >10μs

impedance: 50Ω ±10 %

Output polarity: Positive/negative

The pulse frequency:MAX 2Hz

Series mode:The coupling transformer has a built-in Max16A

The output port: 4mm plug

Operating power range: AC 220V 50Hz

fuse: 6A

Maximum power consumption: 200W

Chassis size:500*470*260 mm

The weight of the instrument: About 20Kg

Temperature range: 15-35℃

Humidity range: 45% - 75%

Air pressure range: 86kPa –106kPa
