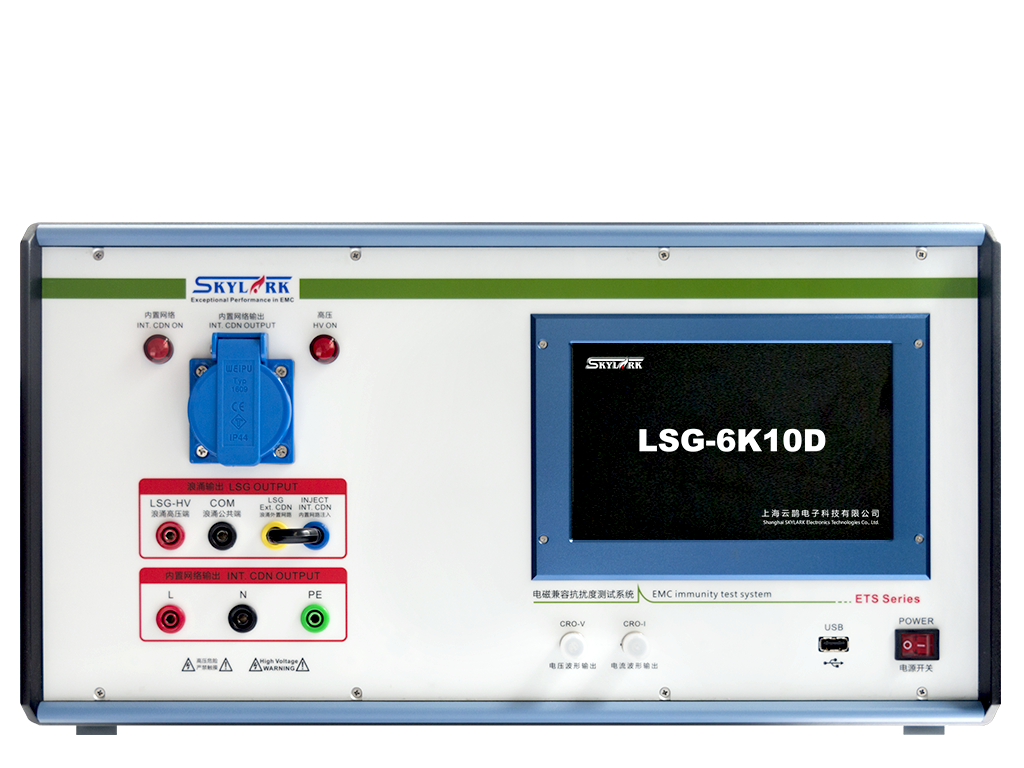

Skylark LSG-6K10D Multi-functional test system (6kV ±5%)

Open circuit output voltage: 6kV (Max) ±5%

Wavefront time: 1.2μs ±30%

Pulse half peak time: 50μs ±20%

Short-circuit output current: Up to 3kA ±5%

Pre-wave time: 8μs ±20%

Pulse half peak time: 20μs ±20%

Output polarity: Positive, negative, positive and negative cycles, positive and negative alternate, positive and negative first, negative and positive

Output impedance: 2Ω±10%

Surge trigger mode: Sync or asynchronous; Surges inject phase

Free set 0-360 degrees, resolution 1 degree

The way the surge is triggered: Automatic or manual, triggered at a single time

The number of surges: 1-9999 times

Programmable tester

Built-in IEC standards and user-defined programs for up to 1000 groups

Surge interval time: 20-9999s

Built-in surge voltage monitoring attenuation ratio: 1000: 1

Built-in surge current monitoring attenuation ratio: 1000: 1

Measurement accuracy: Better than 5%

Surge peak voltage, current display: LCD sync display

Surge voltage, current monitoring output: BNC coaxial terminals, ≥ 1M

EUT voltage, current monitoring parameters

LCD real-time display: AC voltage, current

Built-in network capacity

- AC: single-phase 300V, 10A (16AMax), 50/60Hz

- DC: 300V, 10A (16AMax)

Built-in network coupling

- Line-Line (L-N)

- Line-ground (L-PE, N-PE, L-N-PE)

Built-in network-coupled devices

- Line-line

- 18'F capacitor

- Line-ground

- 10-o resistance s.9 s. capacitor

- Use the environment: Temperature: 10%-75% relative humidity at 15C-35C

System power: AC220±10%,50/60Hz

Form factor: 470mm wide× 260mm high× 500mm deep

Weight of the whole machine: About 30kg

Product standards:

- GB/T17626.12

- IEC61000-4-12

- ANSI C62.41/ 45

- GB 18802.1

- IEC/EN 61000-4-5

- IEC/EN 61850-3

- ITU-T K.12

- ITU-T K.20

- ITU-T K.45

- UL1449
