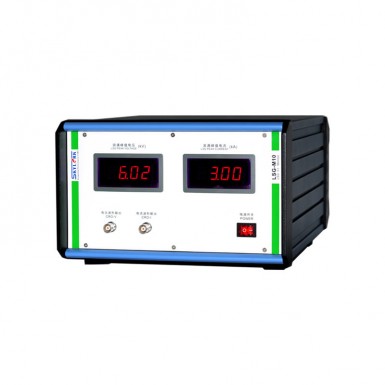

Skylark LSG-M10 浪涌监测器

Test the maximum peak voltage: ±10kV ±10%

Test the maximum peak current: ±5kA ±10%

Voltage attenuation ratio: 1000:1

Current attenuation ratio: 1000:1

Test accuracy: Better than 5%

Surge peak voltage, current display

LED sync display

Surge voltage, current monitoring output

BNC coaxial terminals, ≥ 1M

Use the environment

Temperature: 10%-75% relative humidity at 15C-35C

System power: AC220±10%, 50/60Hz, approx. 30W

Form factor: 260mm wide× 170mm high× 360mm deep

Weight of the whole machine: About 5kg
