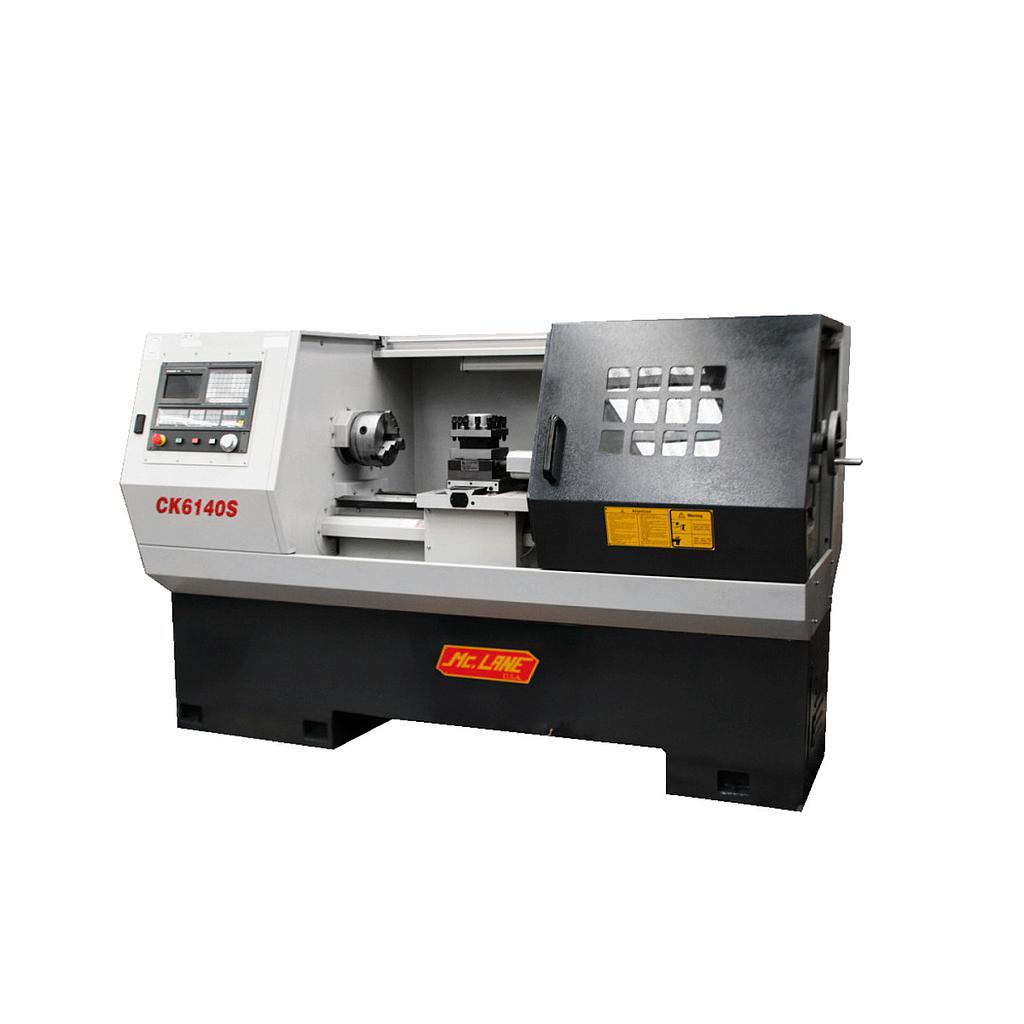

SMAC CK6140S CNC 平床身数控车床

Max.swing over bed: F410mm(16")

Max.swing over slide: F240mm/F150mm(gang tools)

Max.cross travel(X): 235/300mm(gang tools)

Max.length of workpiece: 500、750、1000mm

Rapid feed for Axis X: 5m/min

Rapid feed for Axis Z: 8m/min

Range of spindle speeds(Stepless): 200-2800r/min

Spindle bore: F52

Taper bore of spindle: MT No.6

3-jaw chuck of collet: F200 or 5c

Tool post: 4-way or 6-way or gang tools

Servomotor power(X/Z): 0.75/1.0kW servomotors

Size of tool shank: 20x20mm

Min.input: 0.001mm

Repeatability(X/Z): 0.0075/0.01mm

Surface roughness: ≤Ra0.8µm(Nonferrous)≤Ra1.6µm(Steel part)

Main motor power: 3.7KW(5HP)

Overall dimensions(L X W X H): (1870,2120,2370)x1200x1415mm

Net weight: 1800,2100,2300
