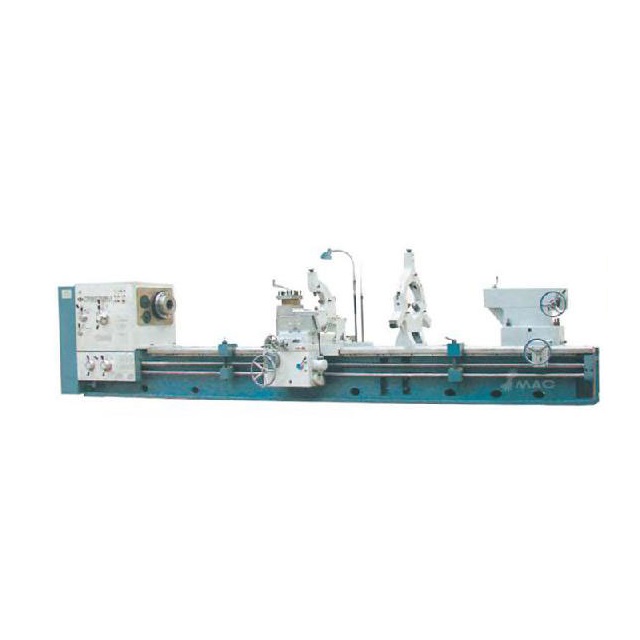

SMAC CWQ61140 高功率数控车床
制造商: SMAC Model: CWQ61140 保障: 12 Month - 报价要求
- 联系
Max.weight of workpiece: 6T
Max.swing over bed: 1400mm
Max.swing over cross slide: 1000mm
Center distance: 1.5m, 2m, 3m, 4m, 5m, 6m, 8m, 10m, 12m
Width of bed: 780mm
Head Stock
Spindle hole: F130mm
Spindle taper: Metric 140#
Spindle speeds: 3.15-315 r/min or 2.5-250 r/mm
Gear box-threads & feeds
Metric threads range (kinds): 44 Kind 1-120mm
Inch threads range (kinds): 31Kind 1/4-24
Moudle threads range (kinds): 45Kind 0.5-60mm
Diametral threads range (kinds): 38Kind 1/2-56DP
Longitudinal feeds range (kinds): 56Kind 0.1-12mm
Cross feed range (kinds): 56Kind 0.05-6mm
Rapid feed: Long / Cross: 1200mm/min, 1800mm/min
Tool-Post
Distance between Center & Tool: 48mm
Tool section: 45x45mm
Carriage
Cross slide travel: 650mm
Compound rest travel: 280mm
Tailstock
Sleeve diameter: F160mm
Sleev taper: Metric 80# or MT6#
Sleeve travel: 300mm
Motor
Main motor: 22kw
Coolant motor: 0.15kw
Rapid feed motor: 1.5kw
Standard Accessories: 4-jaw chuck, Centre, Lighting unit, Cooling unit, Special tools
Optional Accessories: 3.4-jaw chuck, Steady rests, Roller supporting device, Follower rest, Grinding or Milling head device, Taper turning device, Boring device
