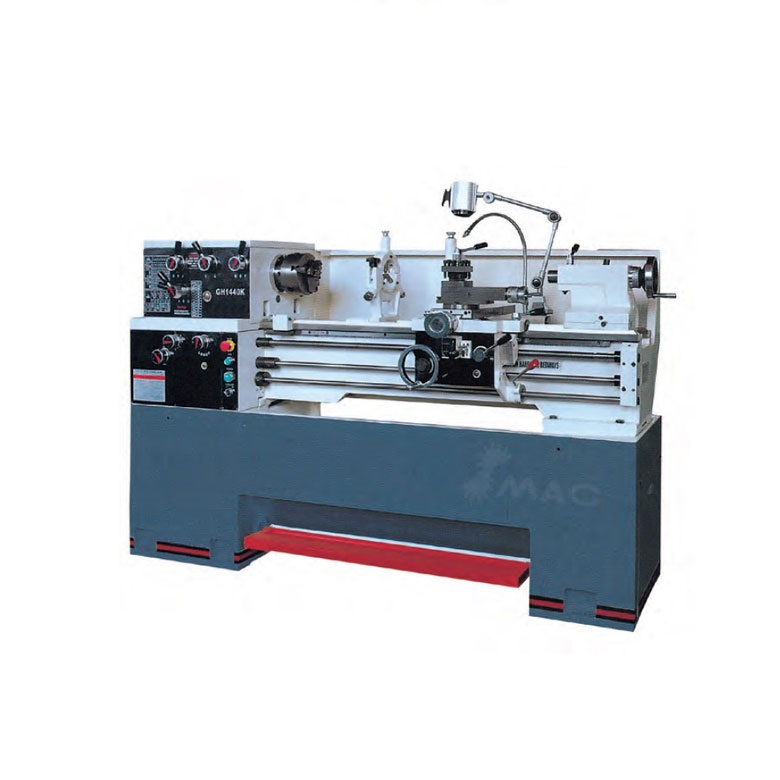

SMAC GH-1440K Engine Lathe

General capacity

    Max.Swing over bed (mm): F356(14”)

    Max.Swing over carriage (mm): F210(8-1/5”)

    Max.Swing over gap (mm): F508(20”

    Width of bed (mm): 260(10-1/5”)

    Distance between centers (Two centers) (mm): 750(30”)/1000(40”)

Main spindle

    Taper of spindle bore: MT-5

    Diameter of spindle bore (mm): F40(1-1/2”)

    Number of spindle speeds: 12

    Range of spindle speeds (rpm): 0-1800

    Spindle nose: D4

Threading & Feeding

    Metric threads: 37kinds/(0.4-7mm)

                       23kinds/(0.45-7.5mm)

    Whit-worth threads: 28kinds/(4-56T.P.I”)

                              40kinds/(4-112T.P.I”)

    Range of longitudinal feeds (mm/r): 0.043-0.653(0.0012”-0.0294”)

    Range of cross feeds (mm/r): 0.024-0.359(0.0004”-0.0103”)

Leadscrew

    Diameter of leadscrew (mm): F22(7/8”)

    Pitch threads of leadscrew: 4mm or 8T.P.I

Tailstock

    Travel of tailstock quill (mm): 120(4-3/4”)

    Diameter of tailstock quill (mm): F45(1-25/32”)

    Taper hole of tailstock quill: MT-3

Power

    Main motor power (KW): 2.4Kw(3HP),3Ph,4P,60Hz,230V

    Coolant pump motor power (KW): 004Kw (0.055HP)

Overall dimemtions of lathe(LxWxH) (mm): 1900x710x1170

Packing size of lathe(LxWxH) (mm): 1900x760x1435

Net weight (Kg): 1200(2650 lbs)

Gross weight (Kg): 1300(2850 lbs)
