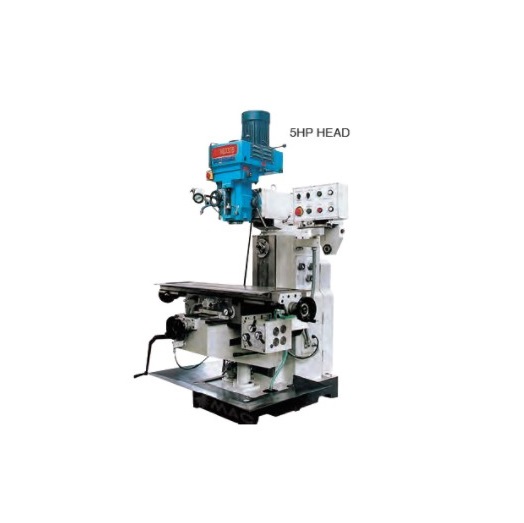

SMAC HVML6332B H/V XYZ Auto-Feeding Milling Machine

Spindle taper: 7:24 ISO40

Distance from vertical spindle nose to table: 150-500mm

Distance from Horizontal spindle nose to table: 0-380mm

Range of spindle speed: 16step 66-4540rpm(vertical)

                                        12step 60-1350rpm(horizontal)

Vertical quill travel: 150mm

Table size: 1250 x 320mm

Table travel

    Longitudinal: 600mm

    Cross: 300mm

    Vertical: 350mm

Distance from spindle axis to arm: 190mm

Range of longitudinal, cross travel: (8step) 22-55mm/min (rapid 810mm/min)

Z-speed of table: 560mm/min

T-slot (number-width-distance): 3-14-70

Main motor: 3.7Kw(vertical)


Motor for rapid device of table (X, Y): 750W

Motor for rapid device of table (Z): 750W-

Overall dimension: 1700 x 1520 x 2260 mm

N.W./G.W.: 1550/1650kg
