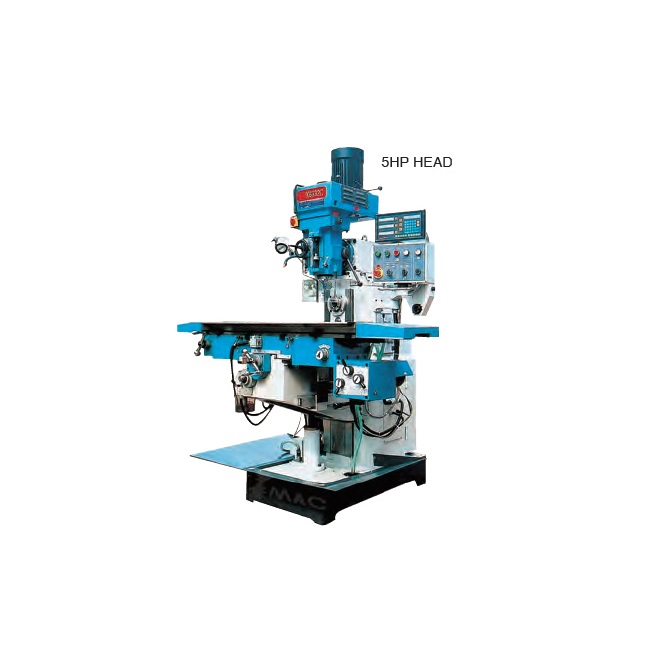

SMAC HVML6332C H/V XYZ Auto-Feeding Milling Machine

Spindle taper: ISO40

Distance from vertical spindle nose to table: 200-600mm

Distance from Horizontal spindle nose to table: 0-350mm

Range of spindle speed: 16step 66-4540rpm(vertical)

                                        12step 60-1350rpm(horizontal)

Vertical quill travel: 150mm

Table size: 1250 x 320mm

Table travel

    Longitudinal: 800mm

    Cross: 300mm

    Vertical: 300mm

Distance from spindle axis to arm: 190mm

Range of longitudinal, cross travel: (8step) 15-370mm/min (rapid 540mm/min)

Z-speed of table: 560mm/min

T-slot (number-width-distance): 3-14-70

Main motor: 3.7Kw(vertical)

                    2.2Kw(horizontal)

Motor for rapid device of table (X, Y): 750W

Motor for rapid device of table (Z): 1100W -

Overall dimension: 1820 x 1520 x 2270mm

N.W./G.W.: 1770/1900kg
