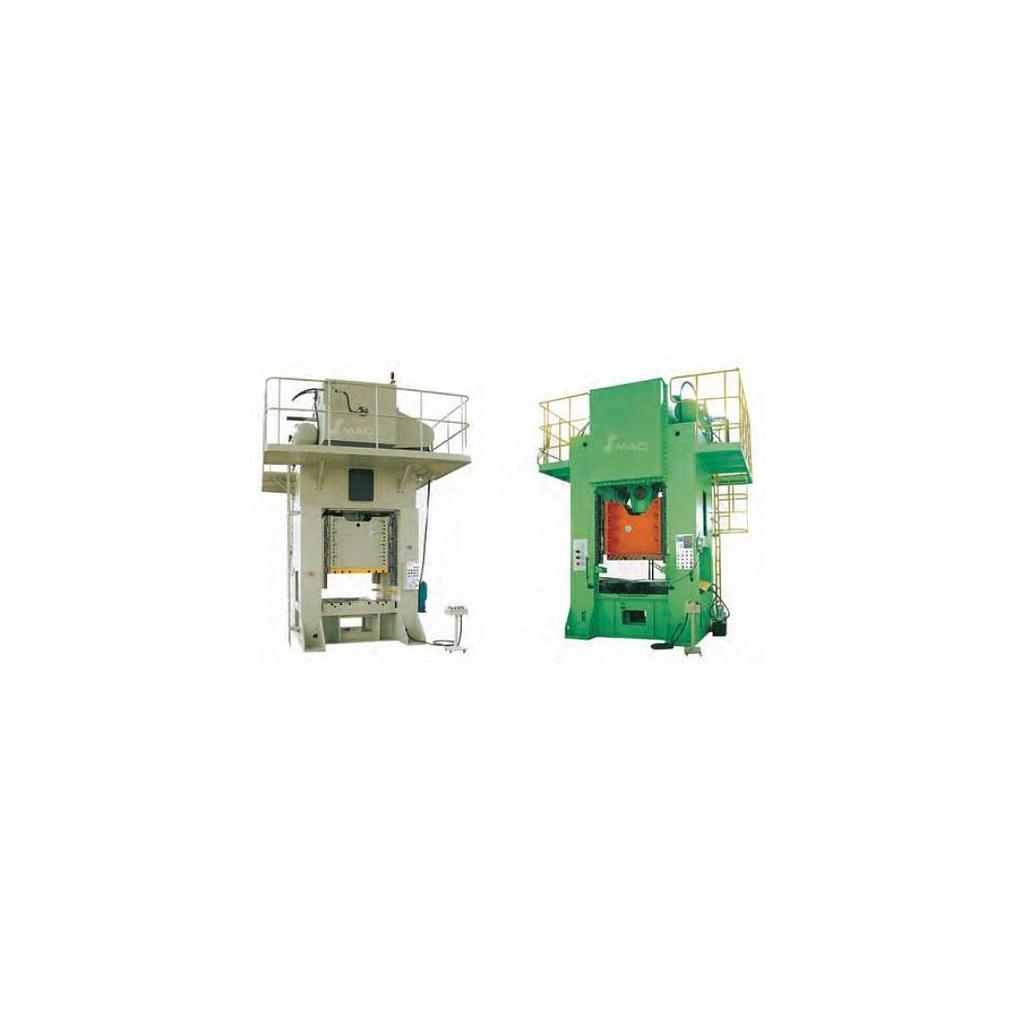

SMAC JL31B-450H 闭式双柱压力机，1点

Nominal force (KN): 4000

Nominal force stroke (mm): 6

Stroke of slide (mm): 100

Strokes per minute (spm): 60~80

Max.die set height (mm): 500

Die height adjustment (mm): 150

Size of table

        L-R (mm): 1400

        F-B (mm): 1300

Bottom size of slide

        L-R (mm): 1200

        F-B (mm): 1200

Distance between gibs (mm): 1290

Cushion

        Clamping/Ejecting force (KN): /

        Number: /

        Stroke (mm): /

Overall dimensions

        L-R (mm): 2600

        F-B (mm): 2340

        Height above floor (mm): 4950

Air pressure (MPa): 0.55

Main motor power (KW): 55

Total weight (T): 46
