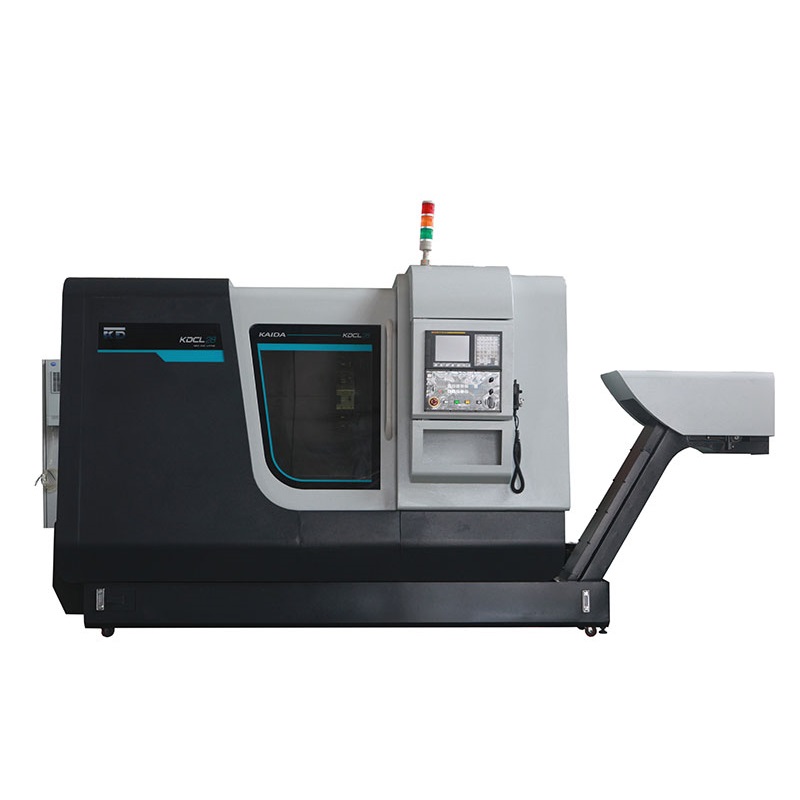

SMAC KDCL-28 CNC 斜床身数控车床

CAPACITY

Max.swing over bed: Ф520mm

Max.cutting diameter for disc parts: Ф420mm

Max.cutting diameter for axle parts: Ф250mm

Max. cutting length: 500mm

TRAVEL

X travel: 255mm

Z travel: 540mm

FEED

Travel speed for axis X/Y/Z: 30m/min

Feed speed for axis X/Y/Z: 30m/min

SPINDLE

Max.speed of spindle: 4000rpm/ 5000rpm(sleeve spindle)

Spindle nose: A2-6

Diameter of spindle bore: Ф65mm

Hydraulic chuck: 8″

Spindle motor power: 11/15kw

TOOL POST

Tool number: 12 ways hydraulic turret

Outside diameter of cutting tool shank: 25×25mm

Inner dia.of cutting tool shank: Ф40mm

TAILSTOCK

Tailstock sleeve dia.: Ф80mm

Tailstock sleeve travel: 120mm

Taper hole of tailstock quill: M.T.No.4

OTHERS

Bed structure: 45° slant bed integrated with stand

Overall dimensions(L×W×H): 4500×1850×2000mm

Net weight: 4300kg
