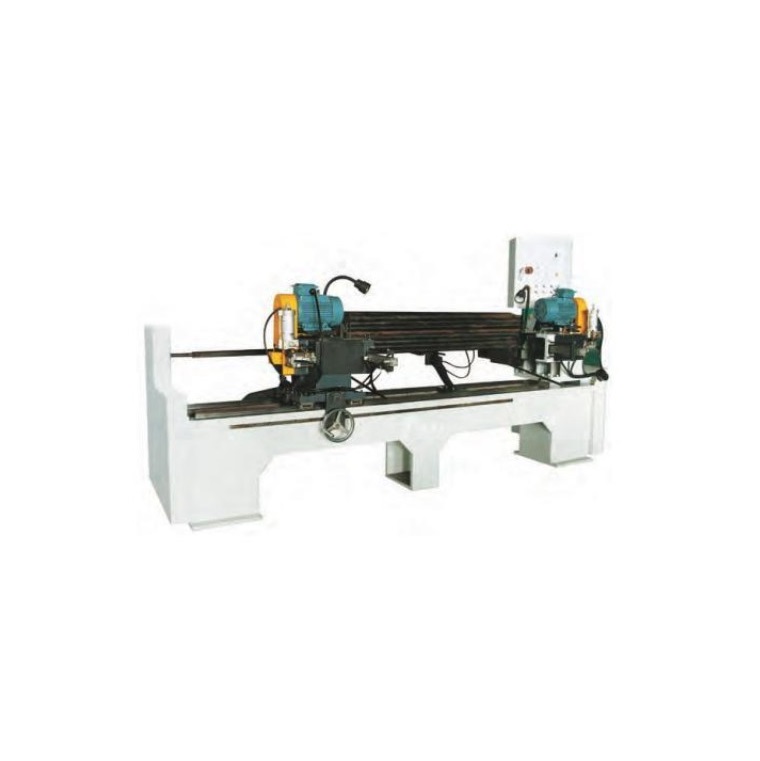

SMAC KM-S2000A Double Ends Beveller

Main motor: 3/1.5HP 2/4P (standard),5/1.5HP 2/4P (optional)

Working air pressure: 0.6~0.8Mpa,120ml/min

Hydraulic Motor (optional): 2HPx4P

Hydraulic pressure: 2~3Mpa

Range of blade: Φ12~Φ60 (standard).Φ25~Φ76,Φ6~Φ12 (optional)

Suitable Pipe: Φ12~52 (standard).Φ25~Φ76 (optional)

Suitable Rod: Φ12~52 (standard).Φ25~Φ76,Φ6~Φ12 (optional)

Workepiece length(mm): 300-2000

Suitable material: copper pipe,iron pipe,stainless steel pipe,steel pipe,AL pipe

Machine dimensions (cm): 313x124x138

Packing dimensions(cm): 323x100x165

N.W(kg): 1400

G.W(kg): 1550


Standard Accessory: 1.standard blade one set 2.circular clamp one set

Optional Accessory: 1.optional blade 2.circular clamp of different size. 3.ATF Auto-Feeder
