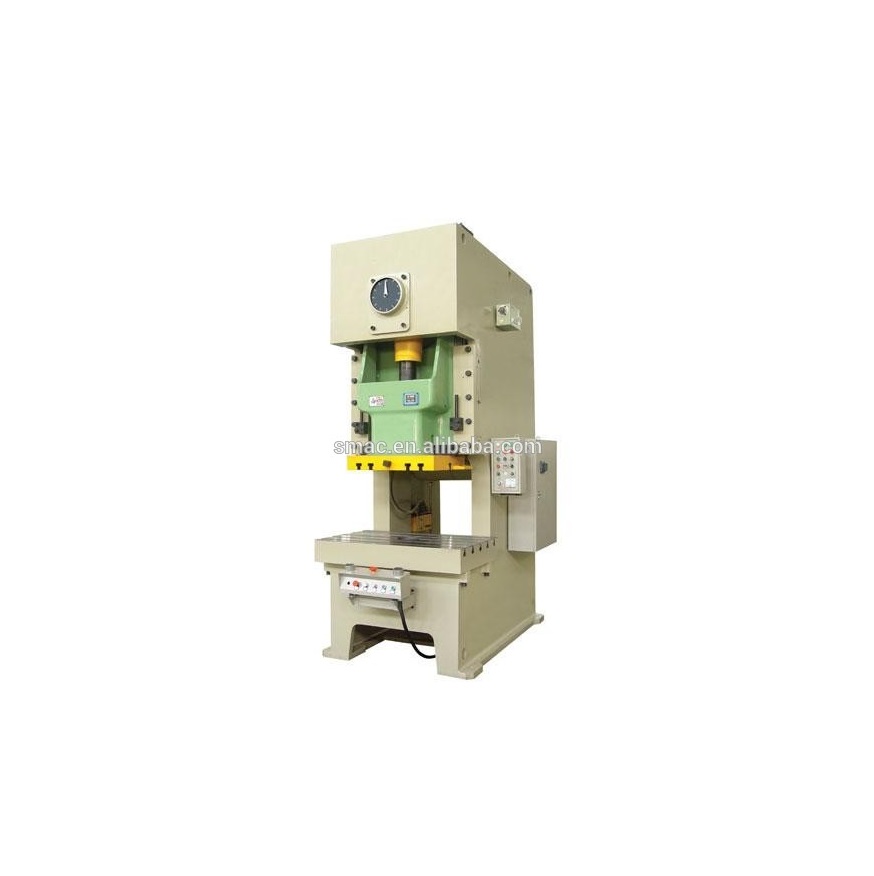

SMAC PSC-80L C式单点压力机

Nominal Pressure (kN): 800

Nominal Pressure Stroke (mm): 4.5

Stroke of Slide (mm): 140

Strokes

        Variable (S.P.M): 40-75

        Single (S.P.M): 60

Max. Die Set Height (mm): 320

Die Height Adjustment (mm): 80

Depth of Throat (mm): 290

Distance between Uprights (mm): 590

Size of Table

        L-R (mm): 1000

        F-B (mm): 560

        Thickness (mm): 130

Size of Opening in Table

        Diameter (mm): F150

Bottom Size of Slide

        L-R (mm): 560

        F-B (mm): 430

Hole for Punch Shank

        Diamente (mm): F60

        Depth (mm): 80

Single Speed Motor Power (kw): 7.5

Variable Motor Power (kw): 7.5

Overall Dimensions

        F-B (mm): 1915

        L-R (mm): 1385

        Heigth (mm): 2820

Total Weight (kg): 7500
