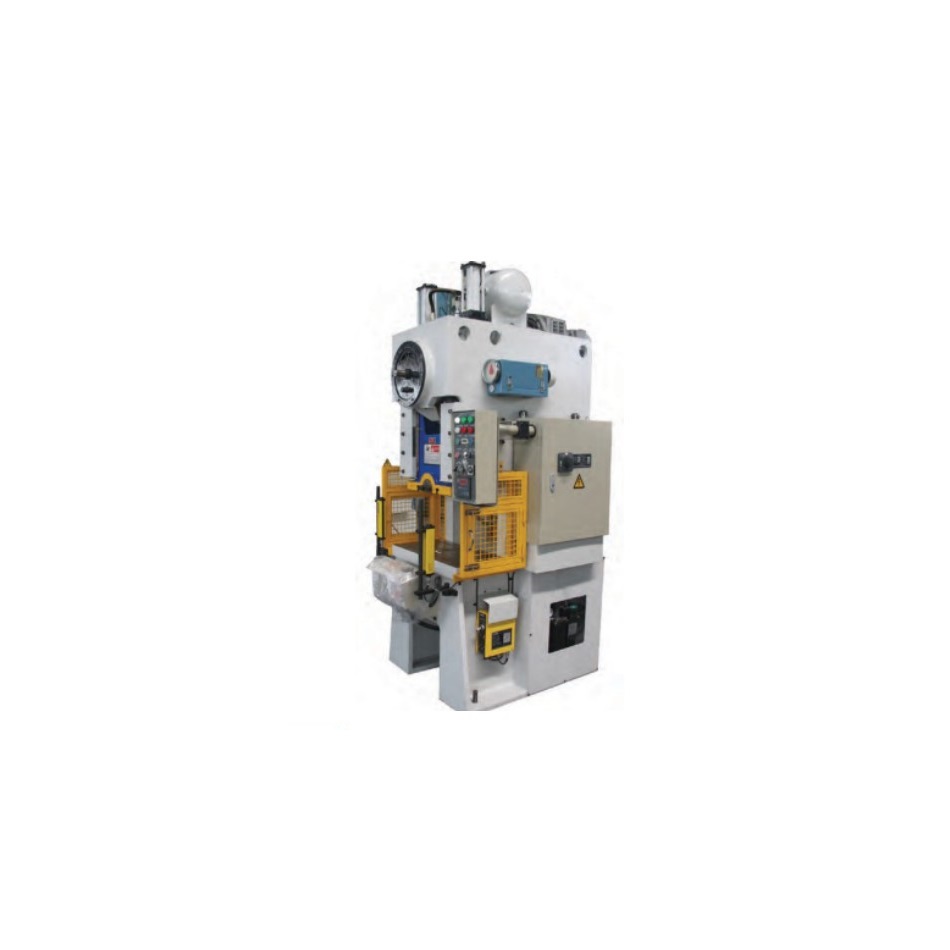

SMAC PSCS-100A C-type Single Point Press w/ Slidestroke adjustable

Nominal Pressure (kN): 1000

Nominal Pressure Stroke (mm): 5

Stroke of Slide (mm): 14.6-140

Strokes (S.P.M): 45-65

Max. Die Set Height (mm): 360

Die Height Adjustment (mm): 90

Depth of Throat (mm): 320

Distance between Uprights (mm): 570

Size of Table

        L-R (mm): 1000

        F-B (mm): 630

        Thickness (mm): 125

Size of Opening in Table

        Diameter (mm): F125

Bottom Size of Slide

        L-R (mm): 700

        F-B (mm): 400

Hole for Punch Shank

        Diamente (mm): F60

        Depth (mm): 80

Single Speed Motor Power (kw): 7.5

Variable Motor Power (kw): 11

Overall Dimensions

        F-B (mm): 1760

        L-R (mm): 1320

        Heigth (mm): 3080

Total Weight (kg): 9200
