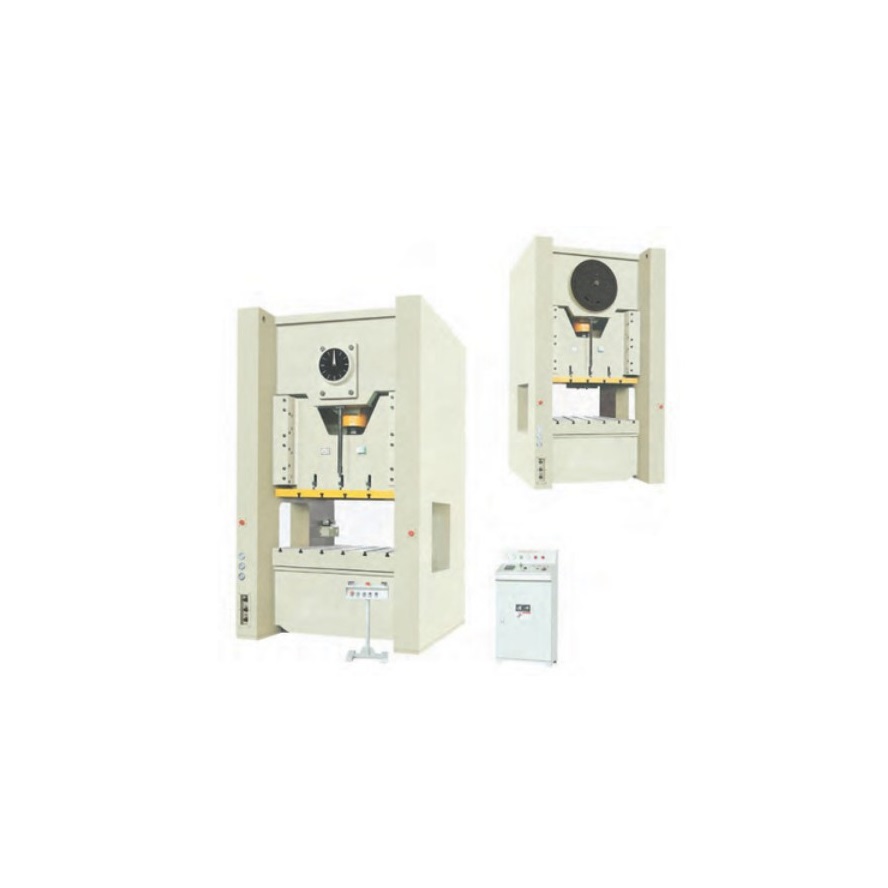

SMAC PSH-630 H式双点压力机

Nominal Pressure (kN): 6300

Nominal Pressure Stroke (mm): 13

Stroke of Slide (mm): 280

Strokes (S.P.M): 15-20

Die Height Adjustment (mm): 120

Max. Die Set Height (mm): 550

Bottom Size of Slide (mm): 1200 x 1400

Distance Between Uprights (mm): 1800

Left and right openring in uprights (mm): 1000

Size of Table (mm): 1300 x 1700

Thickness of Table (mm): 220

Size Opening in the Table (mm): 160 x 600

Hole for inch Shank (mm): F70 x 100

Main Motor Power (KW): 75

Overall size (cm): 380x280x510

Weight (ton): 66
