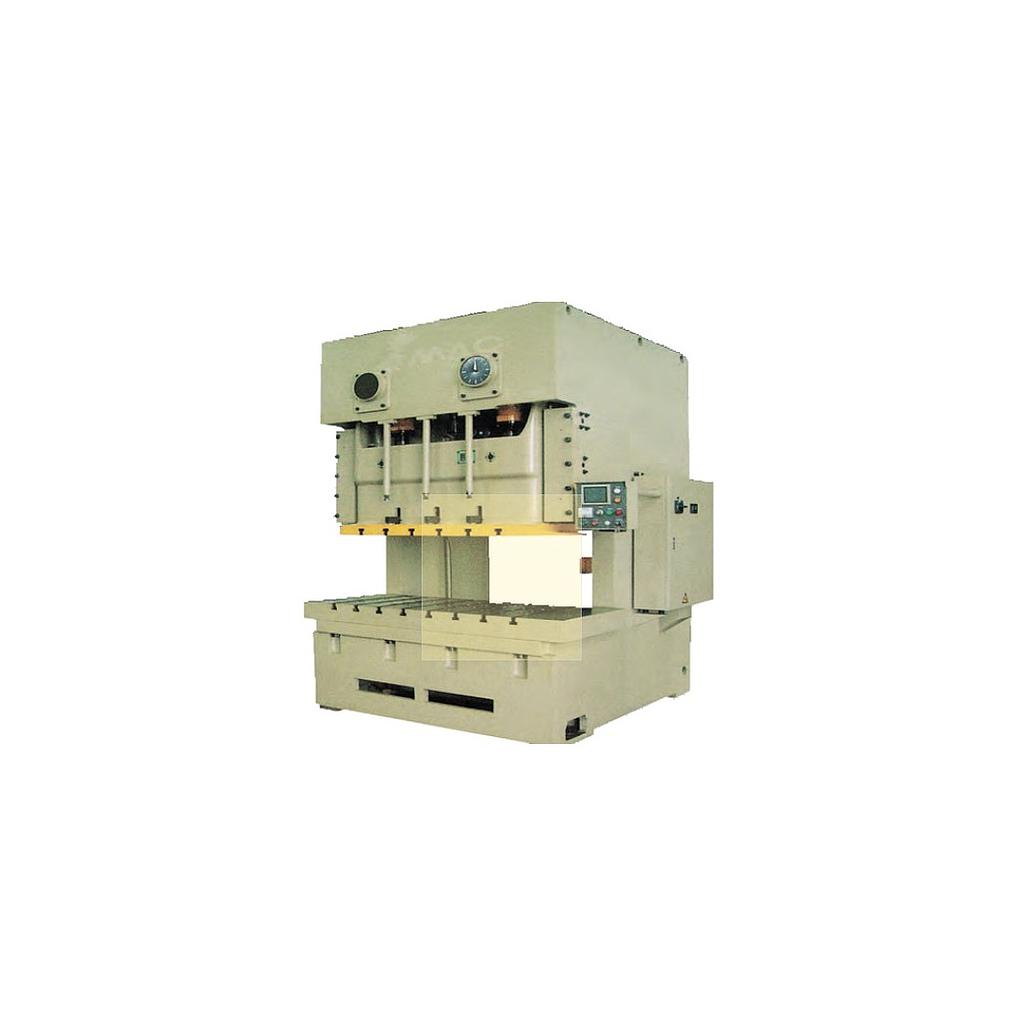

SMAC PTC-80BL C型双点压机

Nominal Pressure (kN): 800

Nominal Pressure Stroke (mm): 4.5

Stroke of Slide (mm): 160

Strokes

        Variable (S.P.M): 40-75

        Single (S.P.M): 70

Max. Die Set Height (mm): 380

Die Height Adjustment (mm): 80

Distance between Uprights (mm): 1310

Size of Table

        L-R (mm): 1650

        F-B (mm): 600

        Thickness (mm): 150

Bottom Size of Slide

        L-R (mm): 1200

        F-B (mm): 460

Main Motor power (kw): 11

Overall Dimensions

        F-B (mm): 2145

        L-R (mm): 2210

        Heigth (mm): 2290

Total Weight (kg): 15000
