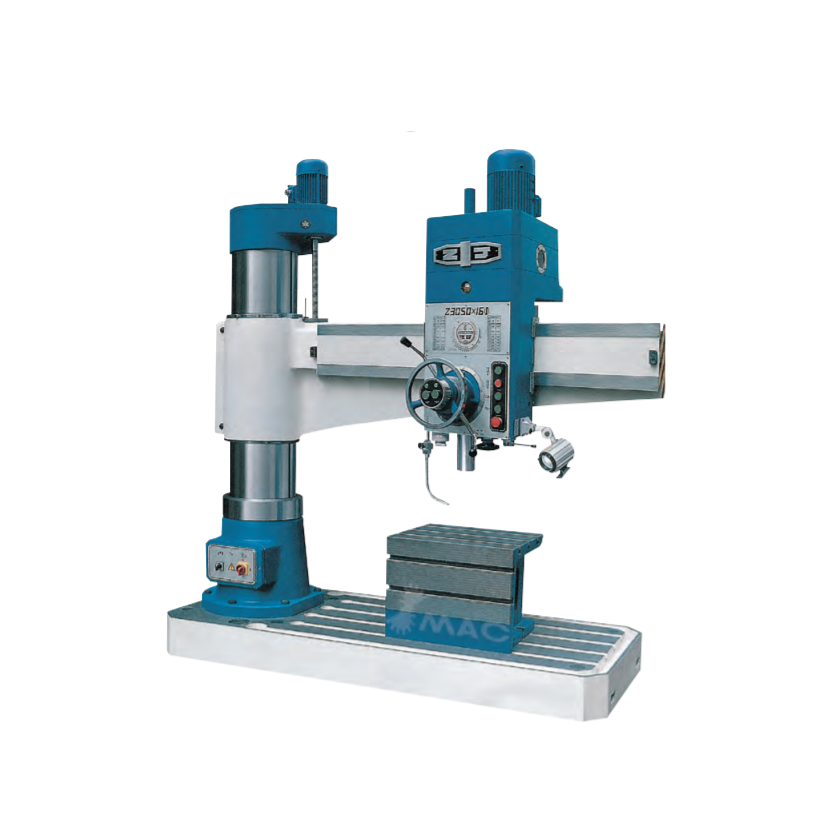

SMAC RD12540 Radial Drilling Machine "ZJ" Brand

Max drilling diameter(mm): 125

Distace between spindle axis and column(mm): Max: 4000

                                                                             Min: 600

Distace spindle nose and working surface of base plate(mm): Max: 2500

                                                                                                   Min: 750

Spindle travel(mm): 560

Spindle taper(NO.): Metrie80

Range of spindle speeds(r/min): 6.3-800

Number of spindle speeds: 22

Range of spindle feeds(mm/r): 0.06-3.2

Number of spindle feeds: 16

Table size(mm): 800x1250

Trave of spindle head(mm): 3400

Power of main motor(kW): 18.5

Net weight(kg): 28500

Overall dimensions (LxWxH)(mm): 5910x2000x5120
