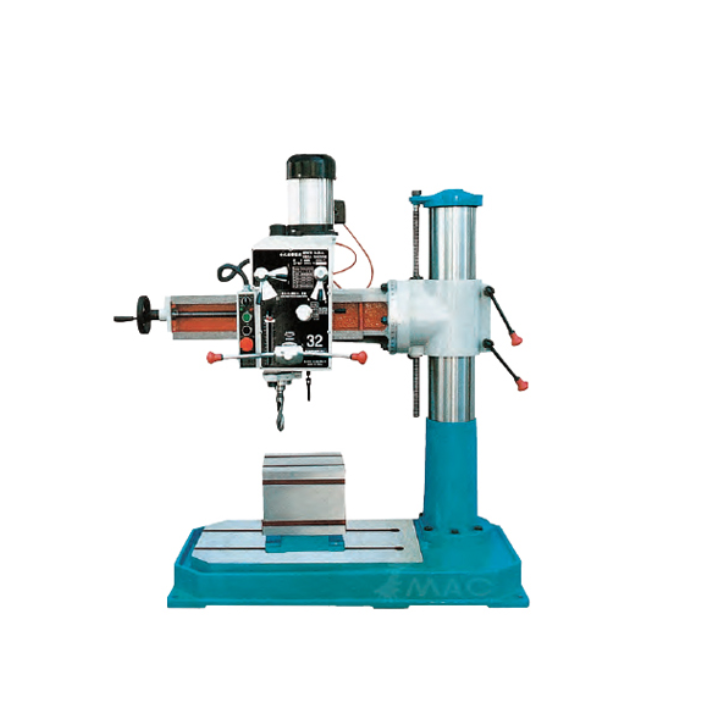

SMAC RD3207 Radial Drilling Machine

Max. Drilling capacity (mm): 32

Distance Spindle axis to column generating line (mm): 300-700

Diameter of column (mm): 150

Spindle taper (mm): MT3

Spindle travel (mm): 150

Spindel speeds range (mm): 100-1600

Spindle speeds series: 8

Range of Spindle feeds (mm/r): 0.08, 0.14, 0.23

Spindle feed: 360

Max. Distance nose to working surface of base (mm): 275-680

Dimension of worktable (mm): 250x250x250

Dimension of base (mm): 1050x550x120

Overall Size (cm): 123x55x120

Power of main motor (W): 0.75

G.W/N.W: 475-380

Packing dimension (cm): 123x62x134


Standard Accessories: Box shape worktable, Taper sleeve, Tool releasing Wrench, Drift, Eyelet bolts

Optional Accessories: Quick instead chuck, Tapping chuck, Grease gun, Foot stand
