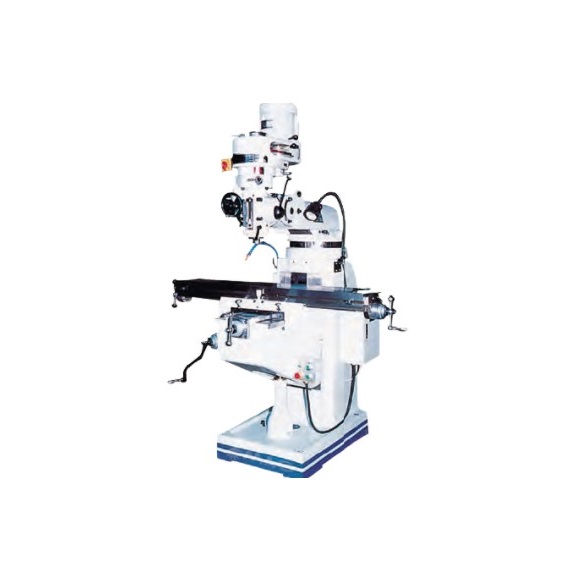

SMAC TM6323B Turret Milling Machine

Table size: 230x1067(9"x42") /230x1246(9"x49")

Long travel: 650 / 840

Cross travel: 305

Vertical travel: 400

T-slot No. and size: 3 x 16

Ram travel: 312

Distance from spindle nose to table surface: 0-415

Spindle hole taper: (Standard): R8

                               (Optional): ISO 30/ISO 40

Spindle travel: 127

Spindle speed: (standard): (shift gradel) 50Hz 65-4500 60Hz: 80-5440

                         (optional): (variable) 65-4500

Auto quill feed: (three steps): 0.04(0.0015"/0.08(0.003")/0.15(0.006") mm/revolution

Spindle motor: 2.25Kw/3HP

Head swivel: 90°

Head tilting: 45°

Dimension of package:

    one miller per case: 1400x1476x2030

    two miller per case: 1450x1570x2080

    three miller per case: 1450x2180x2080

Weight (kg): 1160
