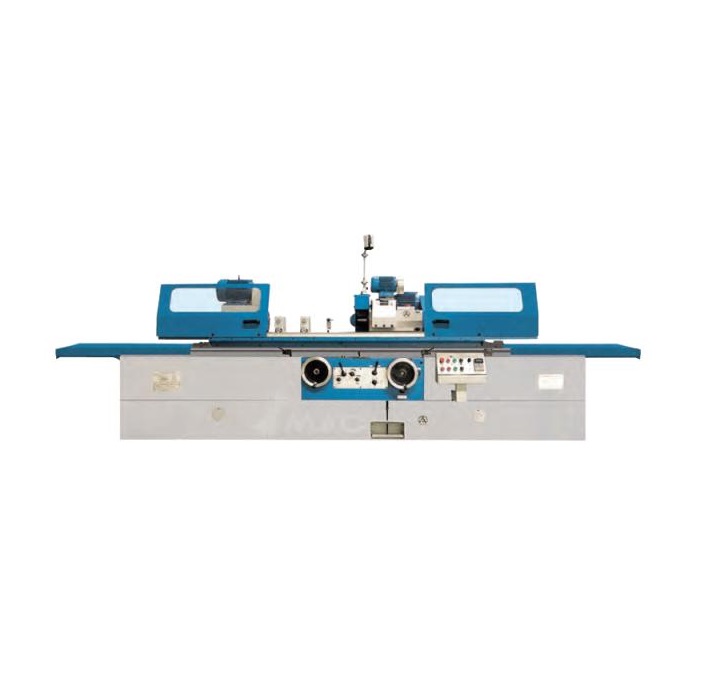

SMAC UCG32 外圆磨床

GENERAL CAPACITY

Distance between centers (mm): 1000, 1500

Center height (mm): 180

Dia. Ground (O.D) (mm): 8-320

Dia. Ground (I.D) (mm): 30-100

Max. length ground (O.D) (mm): 1000, 1500

Max. length ground (I.D) (mm): 125

Max. weight of work piece (kg): 150

WORKHEAD

Swiveling angle (°): ±90°

Center taper (MT): 4

Spindle speed (r/min): 50Hz: 25-220

Wheel spindle speed (rpm): 1670

Wheelhead rapid travel (mm): 50

Max. travel (mm): 246

Swiveling angle (°): ±30°

Hand wheel - turning wheel frame movement (mm): rough: 2 fine: 0.5

Hand wheel - grid wheel frame movement (mm): rough: 0.01 fine: 0.0025

Wheel size (mm): 400 x 50 x 203

Grinding wheel speed (mm): 35

INTERNAL GRINDING DEVICE

Spindle speed (r/min): 1000

Wheel size (mm):

        max: 50x25x13

        min:17x20x6

TABLE

Hand feed per. rev (mm): 6

Max. swiveling angle:

        clockwise (°): 3°

anticlockwise (°): 7°(1000), 6°(1500)

Worktable longitudinal moving speed range (m/min): 0.1-4

TAILSTOCK

Center tape (MT): 4

Quill travel (mm): 70

MOTOR

Wheelhead motor power (Kw): 5.5

Intemal grinding (Kw): 1.1

Workhead motor power (Kw): 1.5

MACHINE

Gross weight (t): 5.3(1000); 6.1(1500)

Packing dimension (cm): 5.3(1000) 6.1(1500); 438x200x 205(1500)
