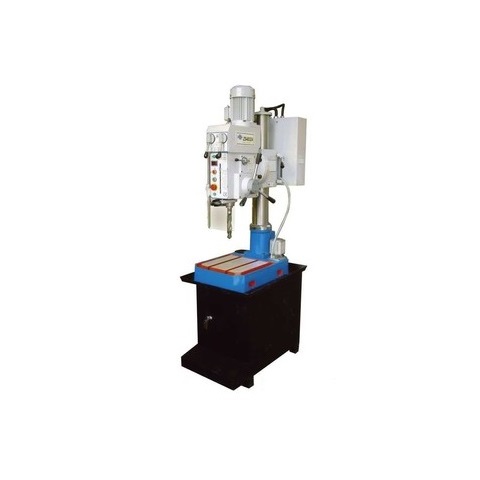

SMAC ZN4025 钻台

Max drilling diameter and tapping diameter: Φ25/M16

Max travel of spindle: 110

Max distance from spindle to generating line of column: 240

Max distance from spindle end to the surface of base worktable: 650

Max travel of spindle box: 500

Spindle taper bore: 3

Spindle speed steps: 6

Spindle speed range: 125~2825

Effective working area of worktable: 310x320

Diameter of column: Φ95

Power of motor: 0.75

Machine dimension: 740x500x1500

Packing dimension: 820x620x2250

Net weight/Gross weight: 230/280

Accessories: Shalf sleeve for taper shank tool, Key type drill chuck, Connecting bar for drill chuck, Wedge for taper shank tool, Double open end spanner.
