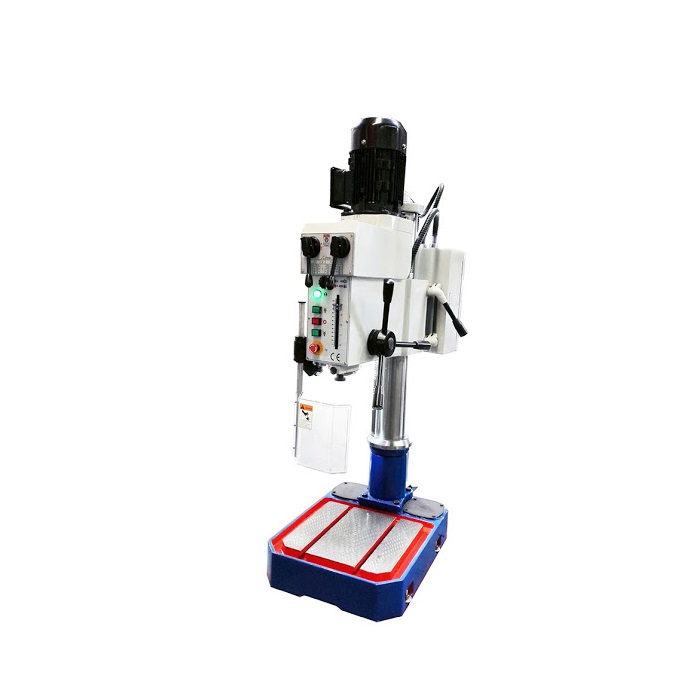

SMAC ZN4030 钻台

Max drilling diameter and tapping diameter: Φ30/M20

Max travel of spindle: 135

Max distance from spindle to generating line of column: 260

Max distance from spindle end to the surface of base worktable: 700

Max travel of spindle box: 520

Spindle taper bore: 3

Spindle speed steps: 12

Spindle speed range: 125~3030

Effective working area of worktable: 335x340

Diameter of column: Φ110

Power of motor: 0.85/1.1

Machine dimension: 740x420x1610

Packing dimension: 820x620x2270

Net weight/Gross weight: 315/360

Accessories: Shalf sleeve for taper shank tool, Key type drill chuck, Connecting bar for drill chuck, Wedge for taper shank tool, Double open end spanner.
