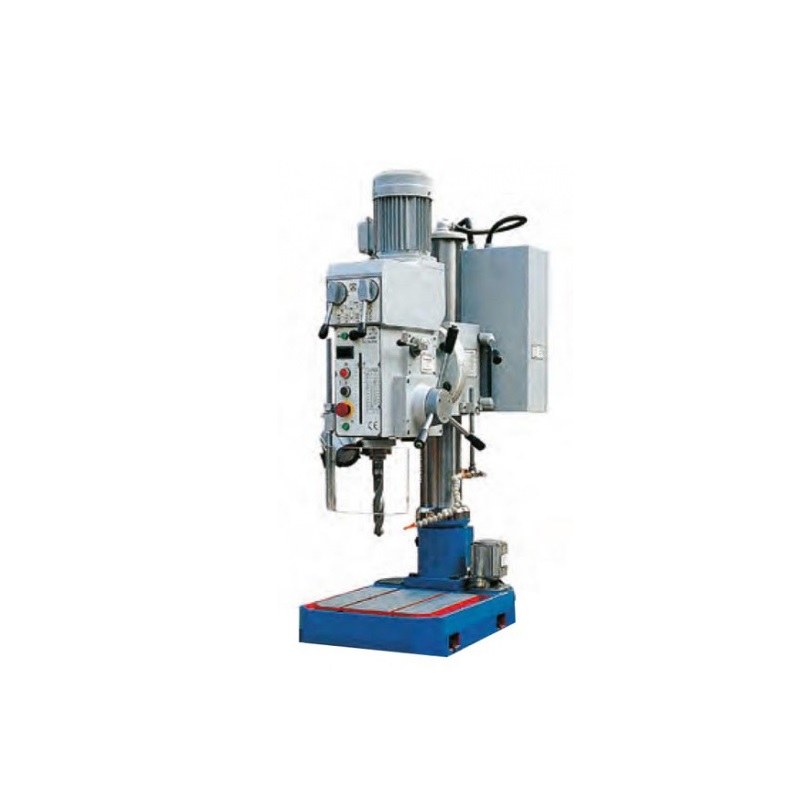

SMAC ZN4035A 台式钻床

Max drilling diameter and tapping diameter: Φ35/M22

Max travel of spindle: 160

Max distance from spindle to generating line of column: 320

Max distance from spindle end to the surface of base worktable: 645

Max travel of spindle box: 515

Spindle taper bore: 4

Spindle speed steps: 12

Spindle speed range: 125~3030

Spindle feed steps: 3

Spindle feed range: 0.1~0.3

Effective working area of worktable: 400x360

Diameter of column: Φ120

Power of motor: 1/1.2

Machine dimension: 810x460x1640

Packing dimension: 820x620x2290

Net weight/Gross weight: 340/385

Accessories: Shalf sleeve for taper shank tool, Key type drill chuck, Connecting bar for drill chuck, Wedge for taper shank tool, Double open end spanner.
