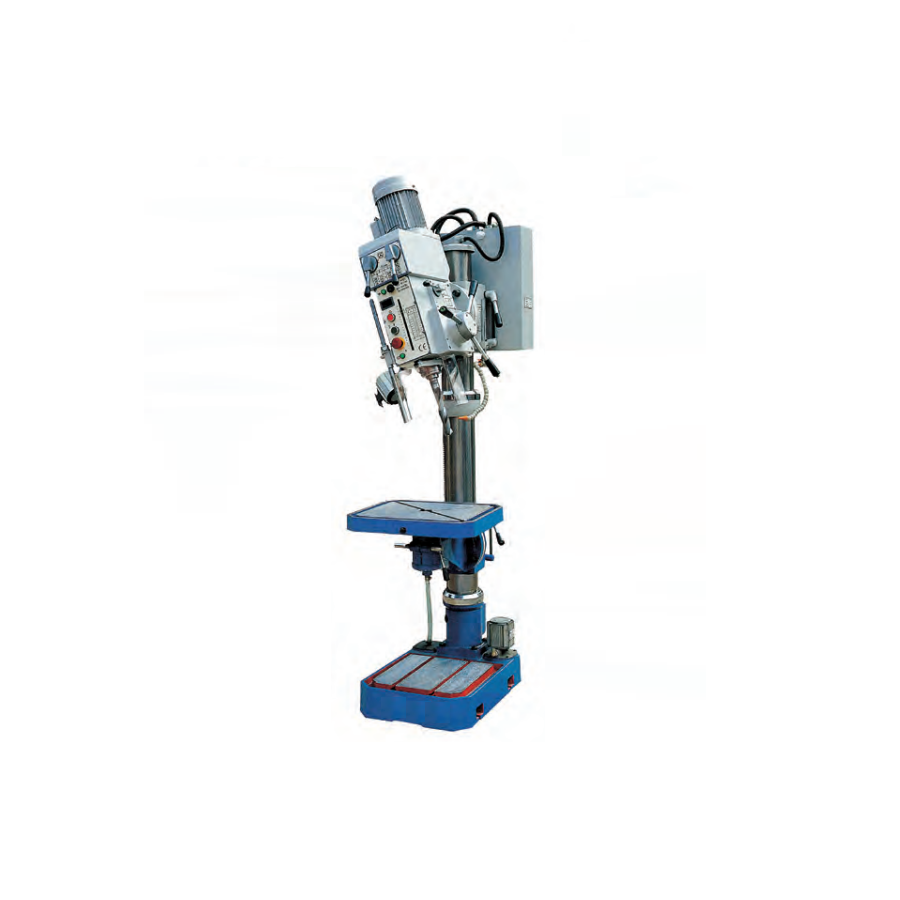

SMAC ZN5030B 立式钻床

Max drilling diameter and tapping diameter: Φ32/M20

Max travel of spindle: 135

Max distance from spindle to generating line of column: 260

Max distance between spindle end to the worktable surface: 670/685

Max distance from spindle end to the surface of base worktable: 1150/1165

Max travel of spindle box: 605/500

Swivel angle of worktable: ±45°

Spindle taper bore: 3

Spindle speed steps: 12

Spindle speed range: 125-3030

Spindle feed steps: 3

Spindle feed range: 0.1~0.3

Dimension of worktable: 420x350

Effective working area of worktable: 335x340

Diameter of column: Φ110

Power of motor: 0.85/1.1

Machine dimension: 700x460x2250

Packing dimension: 870x550x2220

Net weight/Gross weight:340/380


Accessories: Shalf sleeve for taper shank tool, Key type drill chuck, Connecting bar for drill chuck, Wedge for taper shank tool, Double open end spanner.
