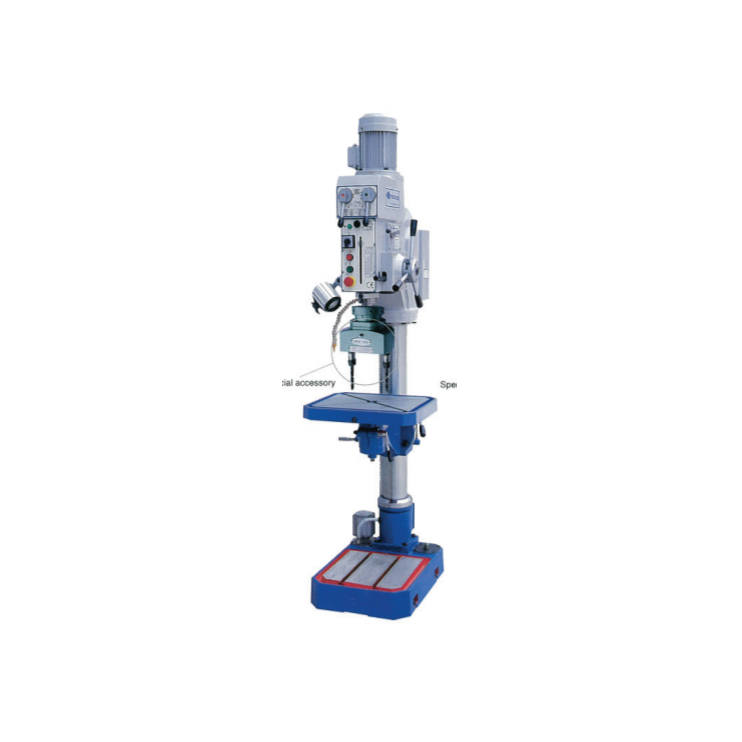

SMAC ZN5035 立式钻床

Max drilling diameter and tapping diameter: Φ35/M20

Max travel of spindle: 160

Max distance from spindle to generating line of column: 320

Max distance between spindle end to the worktable surface: 585

Max distance from spindle end to the surface of base worktable: 1140

Max travel of worktable and bracket (Mannual/Mechanical): 545

Swivel angle of worktable: ±45°

Spindle taper bore: 4

Spindle speed steps: 12

Spindle speed range: 125-3030

Dimension of worktable: 500x420

Effective working area of worktable: 400x360

Diameter of column: Φ120

Power of motor: 1/1.2

Machine dimension: 835x510x1730

Packing dimension: 940x545x2290

Net weight/Gross weight: 430/475


Accessories: Shalf sleeve for taper shank tool, Key type drill chuck, Connecting bar for drill chuck, Wedge for taper shank tool, Double open end spanner.
