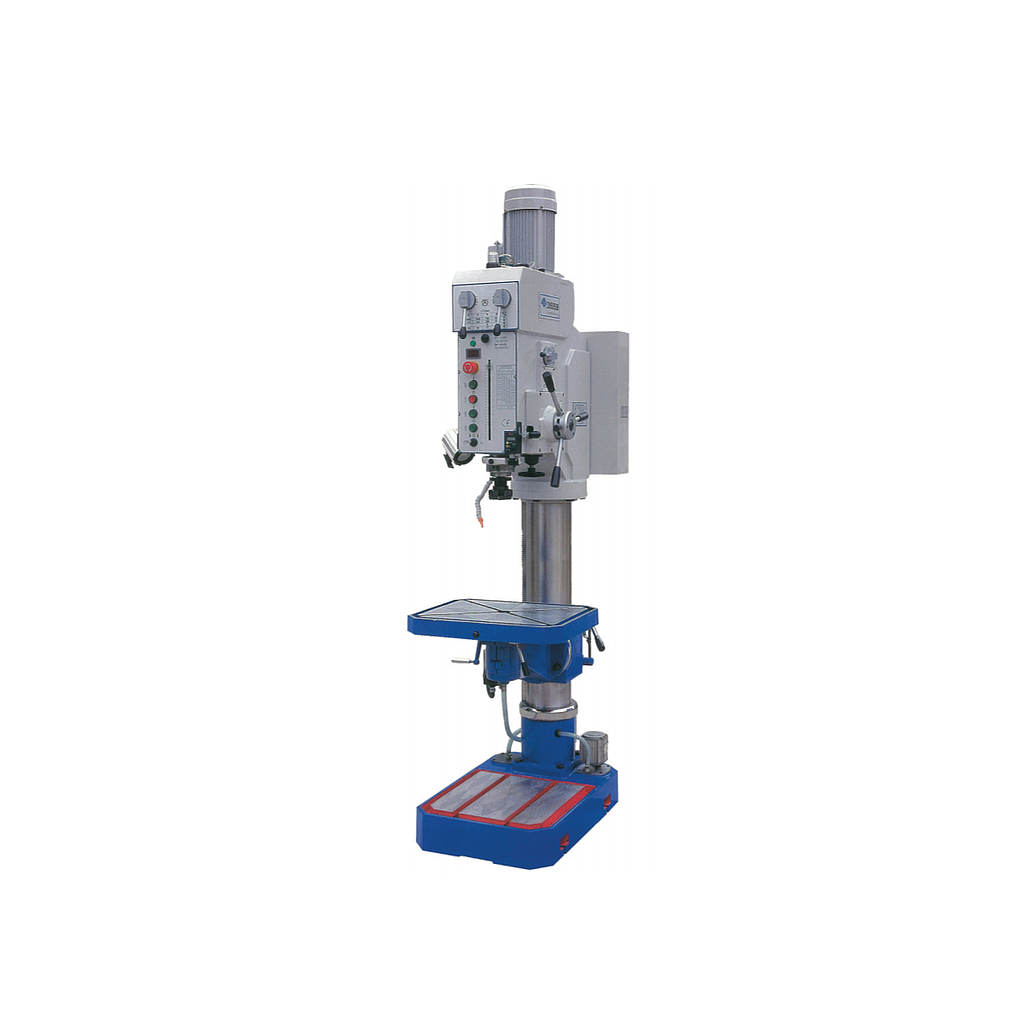

SMAC ZN5050A 立式钻床

Max drilling diameter and tapping diameter: Φ50/M27

Max travel of spindle: 200

Max distance from spindle to generating line of column: 360

Max distance between spindle end to the worktable surface: 590

Max distance from spindle end to the surface of base worktable: 1175

Max travel of worktable and bracket (Mannual/Mechanical): 530(410)

Swivel angle of worktable: ±45°

Spindle taper bore: 4

Spindle speed steps: 12

Spindle speed range: 52-1400

Spindle feed steps: 4

Spindle feed range: 0.1~0.4

Dimension of worktable: 580x460

Effective working area of worktable: 445x435

Diameter of column: Φ160

Power of motor: 2.2

Machine dimension: 940x680x2405

Packing dimension: 1170x680x2300

Net weight/Gross weight: 565/615


Accessories: Shalf sleeve for taper shank tool, Key type drill chuck, Connecting bar for drill chuck, Wedge for taper shank tool, Double open end spanner.
