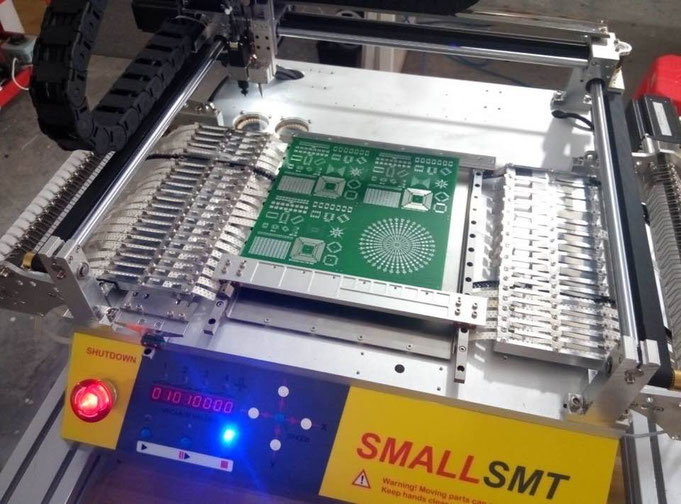

VP-2000S视觉贴片机

This machine has 1 heads and up to 40 x 8mm Feeders

VP-2000S single head 360 degrees continuous rotation,(gallery)

1x top and 2x bottom cameras have a different optical magnification,

Standard feeder configuration is 20 x8mm west and 4x 16mm, 5x 12mm, 7x 8mm east

up to 40 x 8mm feeders plus build in tray option,

west and east feeder included,

Drag needle on head 2.

4 slot nozzle changer included,

240 x 250mm working area, Z axis travel height is 15mm maximum part height 12mm,

capable to mount 0402,0603,0805,1206 and bigger, SOP, QFN, TQFP with minimum 0,5mm pitch,



machine steering keyboard for run / pause / stop and axis movement,



vacuum display for each placement head,

CP45 nozzles snap in holder,

3 nozzles included 1x CN040 1x CN065 + 1x CN220,



Placement speed above 2000pcs / hour!



Mains supply is 110V / 230V AC 50 / 60Hz 400W

All axis are driven by Japanese Stepper motors.



32 Bit ARM build in controller system connected to PC by USB interface
