VP-2500DP-CL16 视觉贴片机


Total up to 72x 8mm feeder!

Working Area: 300x250

Nozzle Changer: 6 slot

West Feeder: 28x8mm push

North Feeder:16x8mm CL Feeder

East Feeder: 28x8mm push

Machine Dimensions:1065x935x455mm

Detail

https://www.youtube.com/watch?v=AYg5mWZnSvk

VP-2500DP-CL16 SMT mounter using 16 CL feeder


  • new linear guides on all axis, no head shaking like competitor machines using small belts and simple round rods
  • new winder mechanics on our integrated push feeders
  • new 3 side feeder possible having slots to move wasted tape under the machine
  • new bottom camera position changed both cameras reachable for both heads
  • new mounting options inside the working area
  • new stronger motors and belts used
  • new small tray feeder included on north and south side of PCB holder

This new machine is based on the same stable VP-2500DP machine design

16x Yamaha CL Feeder support.

1x 28 push feeder West included

1x 28 push feeder East included

Price:

VP-2500DP-CL16 without feeder cassettes 7500USD

Nozzle changer 6 slot included!

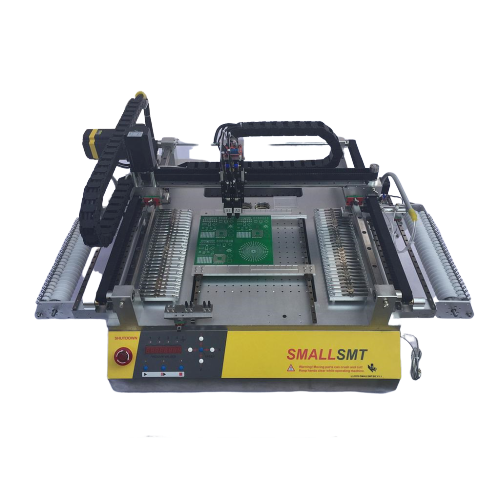

VP-2500DP-CL16 top view
VP-2500DP-CL16 top view

A pick and place machine need feeder lines to supply the components for the placement process.

Our machines have up to 16 CL feeder and up to 56 push feeders on the machine table.

The feeder stock is Yamaha CL feeder compatible

desktop pick and place machine LED mounter Yamaha CL feeder
VP-2500DP-CL16 CL feeder
VP-2500LED mounter top view
VP-2500LED mounter top view
SMALLSMT VP-2500DP pick & place machine bottom camera view
VP-2500DP Bottom cameras

We use new bottom cameras now to improve the vision system quality. Both bottom cameras are now usable for both heads.

X and Y axis motors changed using stronger versions to rise the pick and place speed.

Y axis motor is now a closed loop servo stepper motor. The PCB holder on north side has small tray feeder
