Total up to 57x 8mm feeder!
Working Area: 300x250mm
Nozzle Changer: 6 slot
West Feeder: 28 x 8mm
North Feeder: 2x 24mm, 3x 16mm, 6x12mm, 11x 8mm
(North Feeder max 29x 8mm lines possible)

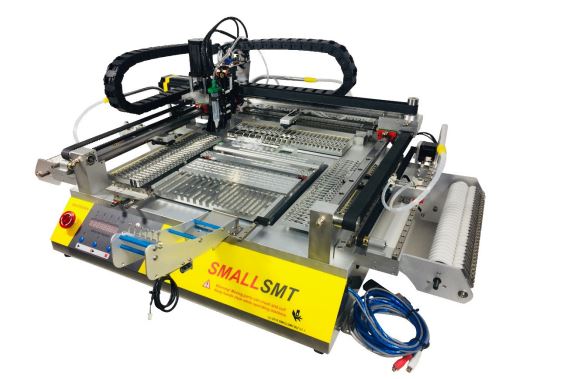

VP-2500DP Precision Belt PNP machine
- new linear guides on all axis, no head shaking like competitor machines using small belts and simple round rods
- new winder mechanics on our integrated push feeders
- new 3 side feeder possible having slots to move wasted tape under the machine
- new bottom camera position changed both cameras reachable for both heads
- new mounting options inside the working area
- new stronger motors and belts used
- new small tray feeder included on north and south side of PCB holder
6 slot nozzle changer included!
West: 28x 8mm
North: 2x 24mm, 3x 16mm, 6x12mm, 11x 8mm
East: 28x 8mm optional!
West feeder has fixed configuration
North feeder customizable
East feeder customizable
All feeders included!
Small trays on North and South side included!
Big tray optional!
High torque stepper motors on X and Y axis microstepping resolution 0,02mm.
Stepper motors for Z axis and A1 + A2.
Angle resolution 0,0278 degree 1/6400
Linear guides from HIWIN in X / Y / Z axis.
Linear guides on each push feeder side.
Strong belt system.
Working area: 300 x 300mm NW and 300 x 250mm NWE
2x Bottom cameras using differnt magnification
1x Top camera for fiducial detection / measurements
1x USB Video digitzer included.
OpenCV based vision system.
English Windows software included based on Yusheng system.
Upgrade to VisionPlacer V3 software possible
