VP-2500DP WNE视觉贴片机

Total up to 85x 8mm feeder!

Working Area: 300x250mm

Nozzle Changer: 6 slot

West Feeder: 28 x 8mm

North Feeder: 2x 24mm, 3x 16mm, 6x12mm, 11x 8mm

(North Feeder max 29x 8mm lines possible)

East Feeder: 28 x 8mm


Detail

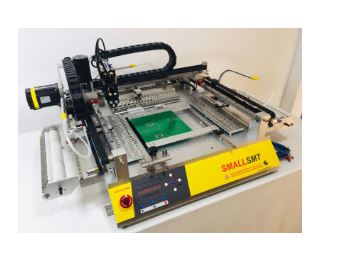

VP-2500DP Precision Belt PNP machine


  • new linear guides on all axis, no head shaking like competitor machines using small belts and simple round rods
  • new winder mechanics on our integrated push feeders
  • new 3 side feeder possible having slots to move wasted tape under the machine
  • new bottom camera position changed both cameras reachable for both heads
  • new mounting options inside the working area
  • new stronger motors and belts used
  • new small tray feeder included on north and south side of PCB holder

Nozzle Changer

6 slot nozzle changer included!

Feeder

West: 28x 8mm

North: 2x 24mm, 3x 16mm, 6x12mm, 11x 8mm

East: 28x 8mm optional!

West feeder has fixed configuration

North feeder customizable

East feeder customizable

All feeders included!

Trays

Small trays on North and South side included!

Big tray optional!

Motion system

High torque stepper motors on X and Y axis microstepping resolution 0,02mm.

Stepper motors for Z axis and A1 + A2.

Angle resolution 0,0278 degree 1/6400

Mechanics

Linear guides from HIWIN in X / Y / Z axis.

Linear guides on each push feeder side.

Strong belt system.

Working area: 300 x 300mm NW and 300 x 250mm NWE

Vision system

2x Bottom cameras using differnt magnification

1x Top camera for fiducial detection / measurements

1x USB Video digitzer included.



OpenCV based vision system.

Software

English Windows software included based on Yusheng system.

Upgrade to VisionPlacer V3 software possiblehttps://www.youtube.com/watch?v=-hweqX_Nbh8
