VP-2500LED 视觉贴片机

Total up to 16x 8mm feeder!

Working Area: 260x240mm

Nozzle Changer: not available!

North Feeder: 16 x 8mm

CL feeder compatible!


Details

VP-2500LED  4 head LED mounter using CL feeder


This new machine is based on the same stable VP-2500DP machine design but add 2 more heads and

16x Yamaha CL Feeder support. It speed up LED PCB placement.

Price:

VP-2500LED without feeder cassettes 6999USD

No nozzle changer possible because of 4 head system!

VP-2500LED top view
VP-2500LED top view

A pick and place machine need feeder lines to supply the components for the placement process.

Our machines have up to 16 CL feeder on the machine table.

The feeder stock is Yamaha CL feeder compatible

desktop pick and place machine LED mounter Yamaha CL feeder
VP-2500LED CL feeder
VP-2500LED mounter top view
VP-2500LED mounter top view

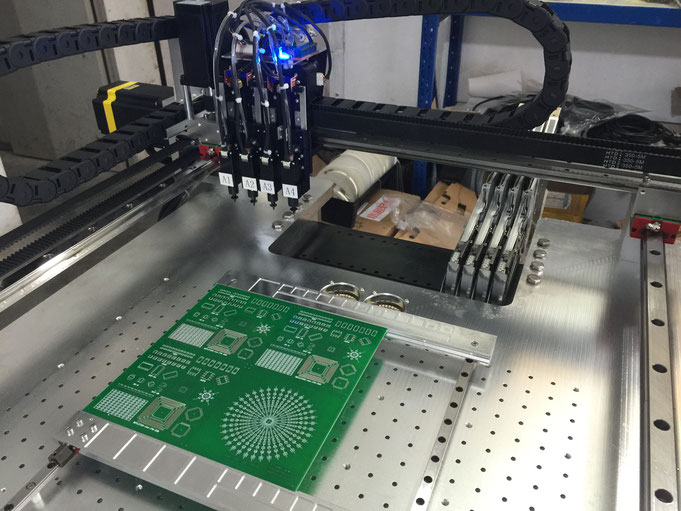

VP-2500LED head system
VP-2500LED head system
SMALLSMT VP-2500DP pick & place machine bottom camera view
VP-2500DP Bottom cameras

We use new bottom cameras now to improve the vision system quality. Both bottom cameras are now usable for both heads.

X and Y axis motors changed using stronger versions to rise the pick and place speed.

Y axis motor is now a closed loop servo stepper motor. The PCB holder on north side has small tray feeder now too.

Download
Working video 4 head VP-2500LED mounter
VP-2500LEDworking.mp4
MP4 Video/Audio File 62.7 MB
Download
Customer working video of LED mounter
VP-2500LED_CUSTOMER.mp4
MP4 Video/Audio File 2.9 MB
