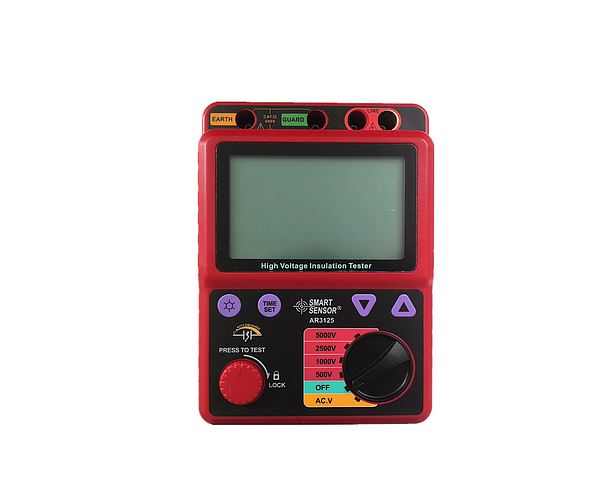

SmartSensor AR3125 高压绝缘电阻表（500V / 1000V / 2500V / 5000V，0 - 1TΩ）
制造商: SMARTSENSOR Model: AR3125 来源: China 保障: 12 Month - 联系
SPECIFICATIONS
Rated Voltage: 500V/1000V/2500V/5000V
Testing Range:
+500V:0.0~999MΩ
+1000V:0.0~1.99GΩ
+2500V:0.0~99.9GΩ
+5000V:0.0~1000GΩ
Accuracy: ±5%rdg±5dgt
Resolution: 1.0V
DC/AC Voltage Test: 30~600V
Overload Protect: AC 1200V/10sec
Withstand Voltage: AC 8320V/5 sec
Insulated Impedance: 1000MΩ
Max. Short Circuit Current: 1.4mA
Polarization Index: √
External DC Adapter: √
Power: C*8 battery
Product Net Weight: 1027g
Product Size: 153*213*95mm
