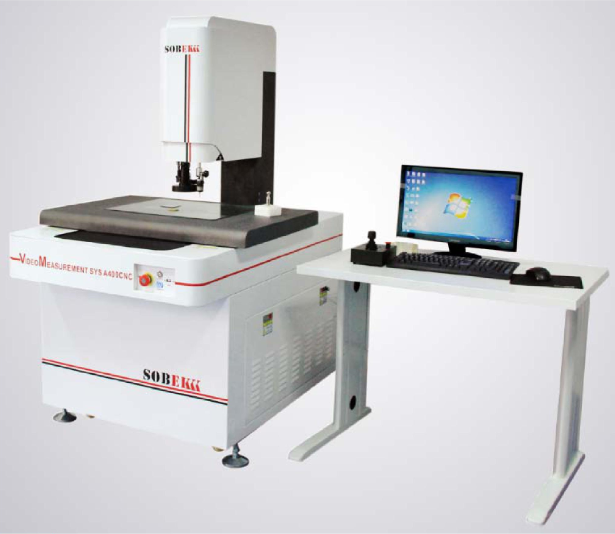

Sobekk A300-CNC 全自动影响测量仪
制造商: Sobekk Model: A300-CNC 来源: China 保障: 12 Month - 报价要求
- 联系
Measuring range(mm): 300*200*180
Machine size(mm): 1450*1050*1650
Weight(kg): 450
Max. load(kg): 20
Accuracy of X-Y axis: 3+L/200μm
Accuracy of Z axis: 5+L/200μm
XYZ resolution: 0.5μm
Repeatability( mm): 0.003
Linear encoder: glass linear scale
Moving speed (mm/s): X-Y: 400 Z: 100
Camera type: 1.3M pixel digital industrial color camera
Liner guide: Taiwan "Hiwin" SP grade linear guideway
Screw rod: "TBI" ground ball screw rod
Optics: 6:5:1 continual zoom auto lens
Magnification: optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X
Software: SBK-CNC full-automatic measuring software
Control system: SBK4000 fully closed-loop control
Profile illumination: LED cold lighting,256 level programmable brightness adjustment
Surface illumination: 4 rings 8 segments LED cold lighting with segmented independent control
& 256 level programmable brightness adjustment
Motor: Japan AC servo motor
Operated mode: software + joystick
Option device: Renishaw MCP probe, Keyence /Omron laser measure probe
