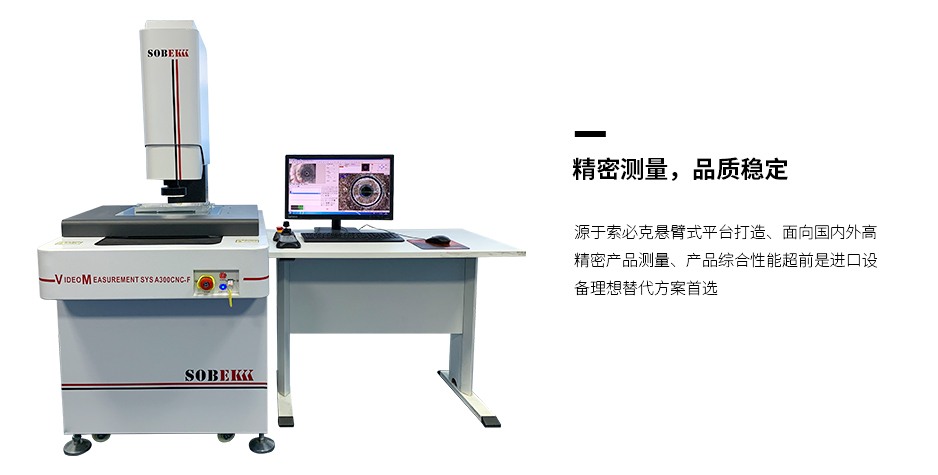

Sobekk A500-CNC 手动影像测量仪

Measuring range(mm): 500*400*180

Machine size(mm): 1800*1400*1650

Weight(kg): 650

Max. load(kg): 25

Accuracy of X-Y axis: 3+L/200μm

Accuracy of Z axis: 5+L/200μm

XYZ resolution: 0.5μm

Repeatability( mm): 0.003

Linear encoder: glass linear scale

Moving speed (mm/s): X-Y: 400 Z: 100

Camera type: 1.3M pixel digital industrial color camera

Liner guide: Taiwan "Hiwin" SP grade linear guideway

Screw rod: "TBI" ground ball screw rod

Optics: 6:5:1 continual zoom auto lens

Magnification: optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X

Software: SBK-CNC full-automatic measuring software

Control system: SBK4000 fully closed-loop control

Profile illumination: LED cold lighting,256 level programmable brightness adjustment

Surface illumination: 4 rings 8 segments LED cold lighting with segmented independent control

& 256 level programmable brightness adjustment

Motor: Japan AC servo motor

Operated mode: software + joystick

Option device: Renishaw MCP probe, Keyence /Omron laser measure probe
