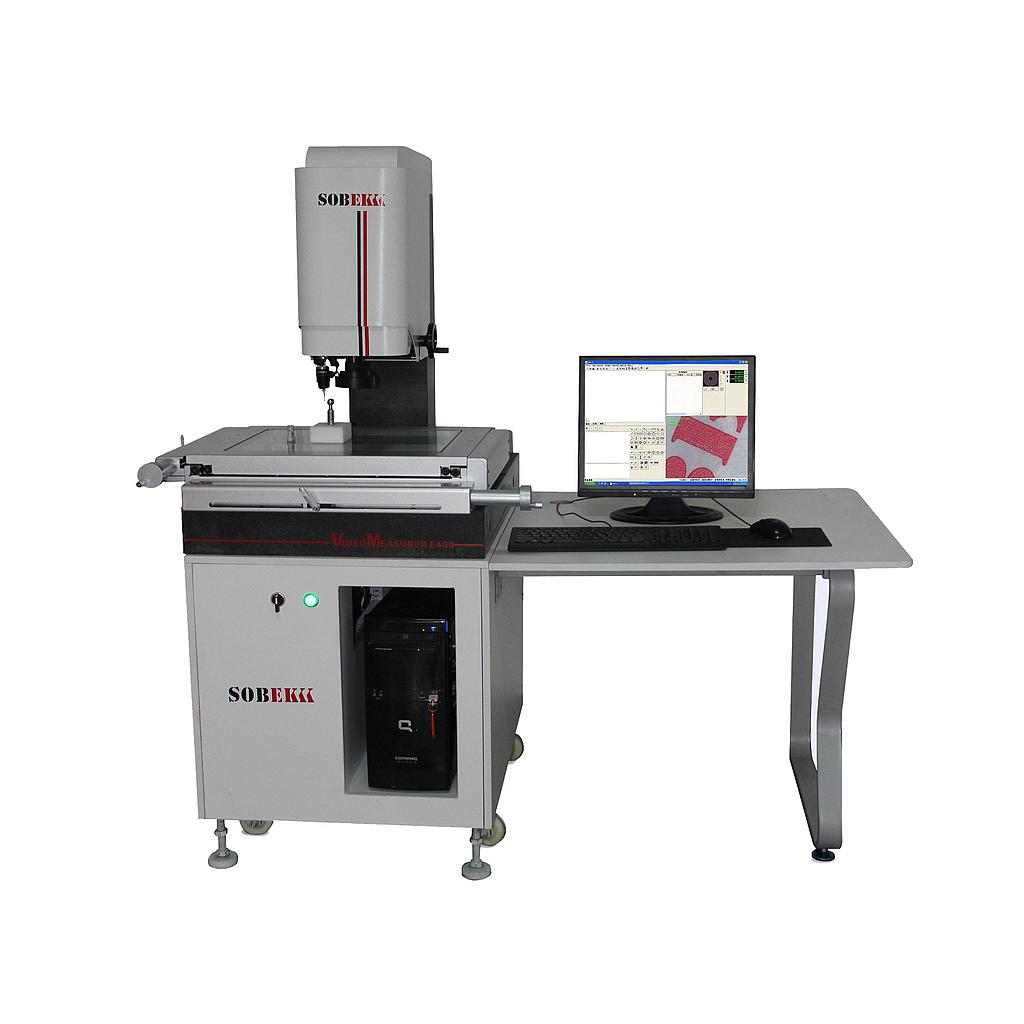

Sobekk EP300 影像测量仪

  • 制造商: Sobekk
    Model: EP300
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • Price (exclude tax) 172,020,000 VND
    Price (include tax) 189,222,000 VND
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Sobekk

Model: EP300

Origin: China

Warranty: 12 months



Measuring range(mm): 300x200x200

Machine size(mm): 750*1300*1500mm

Weight(kg): 170

Max. load(kg): 25

Accuracy of X-Y axis (μm): 3+L/200

Repeatability(mm): 0.003

Measuring mode:video measurement + probe

Linear encoder: exposed glass linear encoder with resolution of 1.0μm

Camera type: SBK-HC536 1/3 inches 600 lines industrial color camera

Guideway: Z axis: “HIWIN”P level guideway  X-Y axis:precision cross roller guideway

Optics: 6.5:1 continual zoom detent body tube

Magnification: optics zoom ratio: 0.7-4.5X; image zoom ratio: 24-158X

Software: SBK-EP 3D measuring software

Profile illumination: LED cold lighting with 256 level programmable brightness adjustment

Surface illumination: 48 LEDs cold lighting with 256 level programmable brightness adjustment

Control system: SBK-3000 data controller、USB interface、software controlled lighting

Probe type: “RENISHAW” MCP probe system

Drive type: Manual
