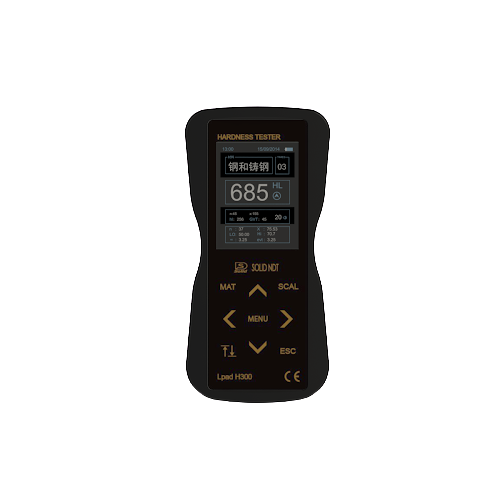

SOLID NDT D0M105 里氏硬度计

Gauge type: Lpad H300

Feature:

+ Color display: Yes

+ USB storage: Yes

+ Wifi Function: Yes

+ Finger Touch: Yes

Power Supply: Battery

Testing direction: Highly accurate in any impact direction (360 degree)

Testing Range: (170-960)HLD,(17.9-69.5)HRC(19-683)H8,(80-1042)HV,(30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB

Hardness Standards: HL, HV, HRA, HRC, HRB, HB, HV, HS

Accuracy: HLD:±0.5% (800HLD)

Repeatability Value: HLD:0.8% (80OHLD)

Data browser: YES

Language: Chinese/English/support custom

Working Conditions:

+ Operating temperature: 10~50°C

+ Storage temperature: -30 °C~60 °C

+ Humidity: 90% max

Data Storage: Data Group standard 140/ support custom

Standard Equipped: The instrument host, The nylon, Small bearing rings(H110, H120), The ABS instrument, Operating manual, Quality Card/Test Report

Optional configuration: Shaped impact device (x7), Shaped support ring(x12), Shock Ball(x2), Nylon brush B(G type impact device use), Replace the impact of the ball head tool, WIFI output software
