SterlingSensors RFEXD31501HP0A60 危险环境电阻温度计 (Pt100 Class B 11x150mm; -50~250°C)

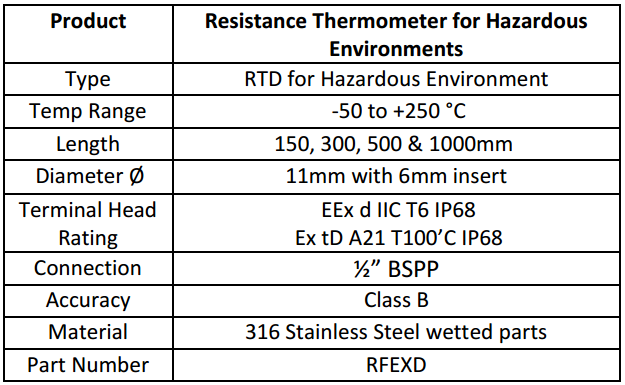

Specification

ATEX Approved

Features

  • ATEX approved Ex d head
  • Flame path collar
  • ½” BSPP Process fitting
  • 316 Stainless Steel sheath
  • Class B RTD sensor

Application

  • Oil & Gas Industries
  • Chemical & Petrochemical
  • Power & Utilities

316 Stainless Steel Sheath with Pt100 RTD Removable Insert

Description

Part Number

11mm dia x 150mm long with 50mm lagging length

RFEXD31501HP0A60

11mm dia x 300mm long with 50mm lagging length

RFEXD33001HP0A60

11mm dia x 500mm long with 50mm lagging length

RFEXD35001HP0A60

11mm dia x 1M long with 50mm lagging length

RFEXD301M1HP0A60

Transmitters

Description

Part Number

RTD in-head Transmitter

IXINHP

ATEX RTD

IXATEP

Datasheet
