SterlingSensors RSMAG630001MOAA7 磁铁RTD表面温度传感器 (Pt100 4-wire Class A 1m; 3kg; -50~250°C)


Specification

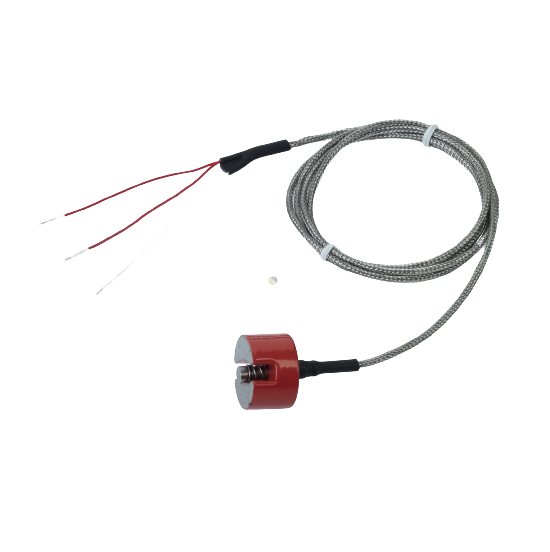

Magnet RTD

Features

  • Magnet will hold 90% of its pull at 400 or 250°C
  • Pt100 Class A
  • Spring loaded
  • 4 wire connection, can be used with 2, 3 or 4 wire systems

Application

  • Surface temperature measurement on ferrous materials
  • Temperature mapping
  • Short term positioning

6kg Pull Force, Rated to 400°C, with 50mm Tails

Description

Part Number

4-wire Class A 1m lead (400°C)

RSMAG660001MOAA7

4-wire class A 2m lead (400°C)

RSMAG660002MOAA7

4-wire class A 3m lead (400°C)

RSMAG660003MOAA7

4-wire class A 4m lead (400°C)

RSMAG660004MOAA7

4-wire class A 5m lead (400°C)

RSMAG660005MOAA7

3kg Pull Force, Rated to 250°C, with 50mm Tails

Description

Part Number

4-wire Class A 1m lead (250°C)

RSMAG630001MOAA7

4-wire Class A 2m lead (250°C)

RSMAG630002MOAA7

4-wire Class A 3m lead (250°C)

RSMAG630003MOAA7

4-wire Class A 4m lead (250°C)

RSMAG630004MOAA7

4-wire Class A 5m lead (250°C)

RSMAG630005MOAA7

Datasheet
