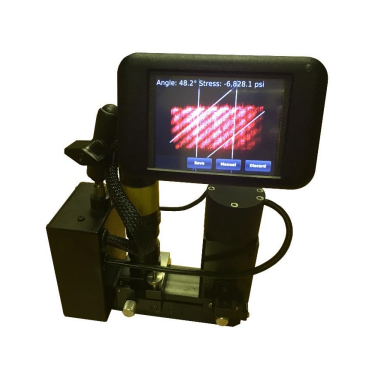

Strainoptics Auto-GASP2玻璃应变片(计算机连接,测量曲率半径> 500mm)

  • 制造商: Strainoptics
    Model: Auto-GASP2
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Strainoptics
Model: Auto-GASP
Origin: USA
Warranty: 12 months

- Applications for GASP Measurements:
+ Heat-Treated Glass
+ Safety Glass
+ Annealed Glass
+ Solar Glass
+ Automotive Glass
1X Standard Wedge
Light Source: Diode Laser
- Measuring Range: 0-90 MPa (0-13,000 psi)
- Resolution (+/-):
+ Tempered Glass: 3.4 MPa (500 psi)
+ Heat-Strengthened: 1.7 MPa (250 psi)
+ Annealed Glass: 0.75 MPa (100 psi)
Light Source: Fiber Optic (White Light)
- Measuring Range: 0-90 MPa (0-13,000 psi)
- Resolution (+/-):
+ Tempered Glass: 3.4 MPa (500 psi)
+ Heat-Strengthened: 1.7 MPa (250 psi)
+ Annealed Glass: 0.75 MPa (100 psi)
2X Standard Wedge
Light Source: Diode Laser
- Measuring Range: 0-84 MPa (0-12,000 psi)
- Resolution (+/-):
Annealed Glass: 0.5 MPa (75 psi)
Light Source: Fiber Optic (White Light)
- Measuring Range: 0-35 MPa (0-5,000 psi)

The AUTO-GASP2 includes a standard LCD-GASP body and preloaded software license with the instrument’s calibration date. Like all GASPs, it also includes a measuring wedge, calibration plate, battery charger, small bottle of IMF, a tin-side detector, and a heavy-duty carrying case.

Chi tiết




NEW FEATURES
