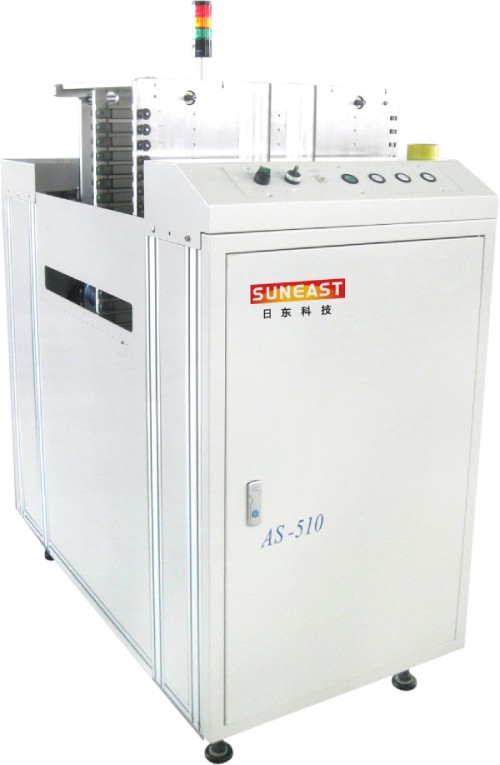

Suneast AS-510 PCB储料器

Machine dimension(mm):     1150L*685W*1600H

PCB Size(mm):   Min:70Lx70W*0.7H~Max:630L*510W*3H

Machine weight:    250kg

Power:   0.3KW

Loading capacity:        0-5kg

Conveying height:        900±20mm

Stepping choice:        10mm,20mm,30mm,60mm,90mm

Repositioning accuracy:        0.1mm

Track adjusting way:        Manual/Power-driven(options)

Control mode:        PLC

Production cycle:        6-10/s

Power supply:        AC220V 50/60Hz

Gas pressure:        0.4~0.7MPa

Direction:        L to R (Options:R to L)
